Druck TERPS RPS/DPS 8100 Pressure Sensor

25mm Stainless Steel Silicon Exposed sensor, TERPS technology platform offers greater performance over current technologies.

Druck TERPS RPS/DPS 8100 Pressure Sensor

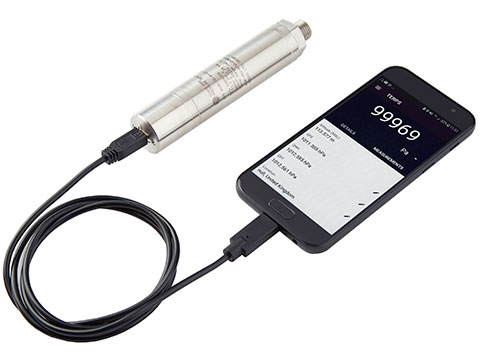

Druck TERPS RPS/DPS 8100 Pressure Sensor with USB Connection
GE Druck TERPS Technology

Starting at $1,269.00 Found a better price? Let us match.

View Company Reviews

Manufactured

By Druck

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Call for availability

Product Manual Product Specs

Features

Exposed silicon construction
Barometric pressure to 0.1mbar (0.1hpa)
Pressure range, 1 to 3.5 Bar (50 psi)
Low g sensitivity
High precision, ±0.01% FS
High stability, ±100 ppm FS/year
Multiple output configurations
- TTL and Diode
- RS-232 and RS-485
Wide selection of pressure and electrical connections
LabVIEW driver available for TERPS DPS versions

The Druck TERPS RPS/DPS 8100 Pressure Sensor is the first product to incorporate the new TERPS technology. TERPS is a resonant silicon pressure sensor technology platform that provides an order of magnitude greater accuracy and stability than current pressure measurement technologies available. The new TERPS technology also extends the pressure range capability to high pressures and by incorporating true pressure media isolation greatly improves its suitability for use in harsh environments.

The TERPS RPS/DPS 8100 product line takes advantage of best practices to offer a wide range of pressure and electrical connections to enable a level of customization for your specific requirements never before available in the performance class of this sensor.

The combination of the power of the TERPS technology and the quality, reliability and flexibility of the RPS/DPS 8000 Series offer a truly unique solution for high accuracy and high stability pressure measurement requirements.

The RPS/DPS 8100 can be used for a variety of applications requiring high levels of precision and stability including:
