  1. Multifunction Process Calibrators

PIE 830 / 830PM Multifunction Process Calibrator

High accuracy diagnostic calibrator with dual display, sources & measures mA , mV, V, ohms, frequency to 20 KHz, 14 TCs & 9 RTDs.

PIE 830 / 830PM Multifunction Process Calibrator
PIE 830 Multifunction Process Calibrator
  • PIE 830 Multifunction Process Calibrator
    PIE 830 Multifunction Process Calibrator
  • PIE 830PM Multifunction Process Calibrator
    PIE 830PM Multifunction Process Calibrator
PIE 830 / 830PM Multifunction Process Calibrator
PIE 830 Multifunction Process Calibrator
PIE 830 / 830PM Multifunction Process Calibrator
PIE 830PM Multifunction Process Calibrator
Starting at $3,899.00

View Company Reviewsby Trustpilot
Manufactured
  • By PIE Practical Instrument Electronics
Includes
  • FREE Ground Shipping
  • FREE Lifetime Tech Support
Availability
  • Some models in stock. View available part numbers.
Product Manual Product Specs (2 Files)
Questions?
Call 1-800-884-4967 or Email Us.
Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Trustpilot

Overview

Features

  • ±0.02% of reading + 0.01% full scale accuracy
  • Milliamp & voltage calibrator sources:
    • 0 to 24mA & 0 to 10.25VDC
    • -20 to 99.999mV & -500 to 999.99mV
  • Simulate 2 wire transmitters
  • Simulate pH probes into transmitters & analyzers
  • Swap out faulty transmitters to diagnose control issues
  • Troubleshoot wiring problems without a multimeter
  • Panel mount option
  • CE compliant
Instrumart logo

This is the recommended replacement for the Altek TechChek 830 & 830-KP Multifunction Process Calibrator.


Description

The PIE 830 / 830PM multifunction process calibrator sources and measures mA , mV, V, ohms, frequency to 20 KHz, 14 TCs & 9 RTDs. It can detect hidden loop problems and can be used as a universal isolated transmitter for temperature, frequency, millivolt or pressure.

The PIE 830 / 830PM automatically detect 2, 3, or 4 wire RTDs. It sources and reads thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P(Platinel II) RTD types Pt 100 Ohm (3850, 3902, 3916, 3926) and 1000 Ohm (3850) copper 10 & 50 Ohm, Nickel 110 and 120Ω.

The patented Loop Diagnostic technology detects ground faults and current leakage. Loop current, loop loads, and power supply voltage are simultaneously displayed in order to check all loop parameters at once.

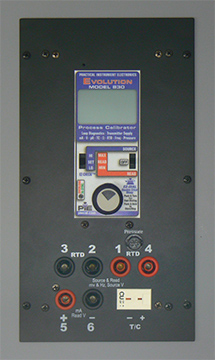

The PIE 830PM is the panel mount version of the PIE 830, and includes 8.75in x 4.75in aluminum mounting plate, screws, and an 110/120V AC adapter.

PIE 830 / 830PM Multifunction Process Calibrator Models:

  • PIE 830-BP: Includes rubber boot and NIST certificate
  • PIE 830: Includes rubber boot, carrying case, test leads, and NIST certificate
  • PIE 830PM: Panel Mount PIE 830 multifunction calibrator

Documents

Spec Sheets

  • PIE 830 Multifunction Process Calibrator Datasheet PDF (910 KB)
  • PIE 830PM Multifunction Process Calibrator Datasheet PDF (476 KB)

Manuals

  • PIE 830 Multifunction Process Calibrator Manual PDF (3.4 MB)

Application Notes and White Papers

  • Troublshooting pH Instruments using PIE Calibrators PDF (209 KB)

Links

  • All possible part numbers

Accessories

PIE 020-0236 Magnet and Hanging Strap
PIE 020-0236 Magnet and Hanging Strap

Hang your PIE calibrator from racks, cabinets, and from pipes.

In Stock
$20.00
PIE Mini Plug Lead Kit for B, R/S, N TCs
PIE Mini Plug Lead Kit for B, R/S, N TCs

Mini plug lead kit with stranded wire for B, R/S and N thermocouples.

In Stock
$175.00
PIE Mini Plug Lead Kit for J, T, E K TCs
PIE Mini Plug Lead Kit for J, T, E K TCs

Mini plug lead kit with stranded wire for J, T, E and K thermocouples.

In Stock
$225.00
PIE Digital Pressure Module
PIE Digital Pressure Module

High accuracy pressure module for differential, gauge, absolute or compound applications.

Starting at $1,749.00
PIE DCAP-0000 Pneumatic Scissor Hand Pump
PIE DCAP-0000 Pneumatic Scissor Hand Pump

Pneumatic scissor hand pump with 0 to 650psi range.

$1,163.00
PIE QTHP-0000 Hydraulic Scissor Hand Pump
PIE QTHP-0000 Hydraulic Scissor Hand Pump

Hydraulic scissor hand pump with 0 to 5000psi range.

$33.00
PIE DPPV Pneumatic Pressure/Vacuum Hand Pump
PIE DPPV Pneumatic Pressure/Vacuum Hand Pump

Pressure/Vacuum hand pump with 0 to -23in Hg and 0 to 125psi range.

$775.00
PIE 1/4in Male NPT x Male Quick Test Fitting
PIE 1/4in Male NPT x Male Quick Test Fitting

1/4in male NPT adaptor with male Quick Test hose fitting with cap.

$31.00
PIE 1/8in Male NPT x Male Quick Test Fitting
PIE 1/8in Male NPT x Male Quick Test Fitting

1/8in male NPT adaptor with male Quick Test hose fitting with cap.

$32.00
PIE Quick Test Hose
PIE Quick Test Hose

6900 PSI/475 bar microbore hose for pressure testing, 3ft (1m).

$81.00
PIE 5 Piece Pressure Fitting kit
PIE 5 Piece Pressure Fitting kit

Quick Test hose connections kit with 1/8in MNPT, 1/8in FNPT, 1/4in MNPT, 1/4in FNPT & 1/4in tube adapter.

$99.00

In Stock

Part Number Price Available
PIE 830
Show Configuration
$4,079.00 1 in stock
Configuration for PIE 830
Base Price:
$0.00
Options
Includes rubber boot, carrying case, test leads, and NIST certificate (+$4,079.00)
Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
