AccuMac AM1760 Secondary SPRT
-328 to 1238°F inconel sheath standard platinum resistance thermometer with 100Ω nominal resistance.
Overview
Features
- -328 to 1238°F (-200 to 670°C) temp range
- ±0.004°C drift rate
- 0.25 inch (6.35mm) diameter
- Choice of 12 or 20 inch probe length

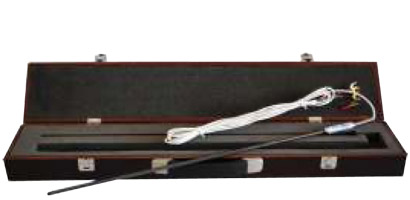

- 20 inch comes with wooden case
- Meets ITS-90 criteria
Description
The AccuMac AM1760 Secondary SPRT features an accuracy of ±0.006°C at 0.01°C, a short term stability of ±0.002°C and a very low drift rate of less than 19mK after 500 hours. The sensing element is designed to protect the platinum sensing wire from contamination at high temperatures, giving the device a high level of stability and repeatability in performance. A uniquely designed support structure and filling material provides an excellent balance between the hysteresis effect, mechanical shock, and thermal shock performance.
