Fluke Ti200 Infrared Camera

30,000 pixels (200 x 150), -4 to 1202°F, sensitivity ≤0.075°C at 30°C, LaserSharp Auto Focus, & Fluke Connect.

Fluke Ti200 Infrared Camera
Fluke LaserSharp Auto Focus Video

Retired products cannot be ordered

The Fluke Ti401 PRO Thermal Camera is the recommended replacement

View Company Reviews

Part Number

FLK-Ti200 60HZ

Manufactured

By Fluke

Includes

FREE Ground Shipping
FREE Lifetime Tech Support
FREE Accessories Included

Product Manual Product Specs (2 Files)

Features

Built with Fluke Connect
High temp measurement up to 2192°F (1200°C)
30,000 pixels (200 x 150)
Accuracy: ±2°C or 2%
High resolution 640x480 capacitive touch screen
12° x 9° field of view
Streaming video (USB and HDMI)
Detect and communicate issues faster
60Hz image capture frequency
SmartView software available via free download

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

Standard infrared lens
AC power supply and battery charger

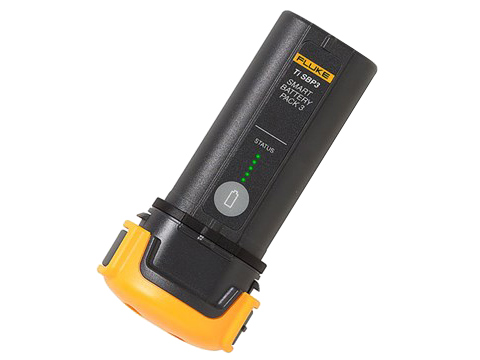

2 lithium-ion smart battery packs
USB cable
HDMI video cable
Hard carrying case
Soft transport bag
Adjustable hand strap
Warranty registration card

The Fluke Ti200 Infrared Camera is powerful high performance camera that makes troubleshooting fast and easy. The Ti200 is handheld and is provided with an easy-to-use interface. The temperature measurement range of -4 to 1202°F (-20 to 650°C) has accuracy of ±2°C or 2% (at 25°C nominal, whichever is greater).

Fluke Connect with ShareLive is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is available for Android (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products.

The Fluke Ti200 Infrared Cameras is equiped with LaserSharp AutoFocus for perfectly focused images. LaserSharp auto focus tells you exactly where you are focusing. It uses a laser to calculate the distance to your target before it focuses. Place the red laser dot on the object you are inspecting, then pull and release the trigger for a perfect in-focus image. The Ti200 has an on-screen emissivity correction, on-screen reflected background temperature compensation and on-screen transmission. The image capture frequency comes at 60Hz.

The Ti200 Detects and communicates issues faster with patented Fluke IR-Fusion technology with AutoBlend mode. Faster communication is capable with wireless image transfer directly to your PC, Apple iPhone or iPad. The Ti200 features a ruggedized high resolution 640x480 capacitive touch screen for quick menu navigation. Capture additional digital images to show location or additional site details with IR-PhotoNotes Annotation System. Optional interchangeable lenses for greater flexibility in additional applications.
