Fluke 709 / 709H Loop Calibrator
Precision current loop calibrators with optional HART communications provides best in class accuracy and an intuitive interface.
- By Fluke
Overview
Features
- Best in class 0.01% reading accuracy
- Functions: mA source, mA simulate, mA read, mA read/loop power, and volts read
- Ranges: mA (0 to 24mA) and volts (0 to 30 V dc)
- Large, easy-to-read display with backlight and contrast adjust
- Simultaneous mA and % Readout
- Intuitive user interface with quick-set knob for fast setup, easy use
- 24 V internal loop power supply
- Pushbutton step and ramp keys for fast linearity checks
- Compact rugged design
- Two simple connections and protection up to 240 V ac
- The Fluke 709H adds:
- HART Communications for several universal and common practice commands
- Serial port for exporting HART configuration and loop data logs with optional 709H/Track Software
Description
The Fluke 709 / 709H loop calibrators are precision instruments that offer best in class accuracy. Designed to save time and produce high quality results, these calibrators are built around a user friendly interface with dedicated buttons and a quick-set rotary encoder knob. This combination dramatically reduces the time it takes to measure voltage, source or loop. The rugged case is contoured to easily fit a technician's hand and the large backlit graphics display is easy to read, even in dark, cramped worked areas.
With an accuracy of 0.01%, the Fluke 709 and 709H performs basic functions such as: mA source, mA simulate, mA read, mA read/loop power, and volts read. The milliamp range is 0 to 24 mA while voltage range is 0 to 30 V dc. Results are shown on the large, easy-to-read display with backlight and contrast adjust.
The Fluke 709H adds HART communications and supports a select set of the HART universal and common practice commands. This makes the 709H unique as both an affordable, compact loop calibrator and powerful HART communication tool. In the communicator mode, the user will be able to read basic device information, perform diagnostic tests, and perform output trim on most HART enabled transmitters. The 709H also has the ability to store up to 20 HART device configurations and data log or record data on the loop.
Items included with the Fluke 709 Loop Calibrator:
- Two Alligator Clips (model AC72)
- Test Leads (model TL75)
- Soft case
- Six AAA batteries (installed)
- Product manual CD-ROM
- Quick reference guide
- Safety information

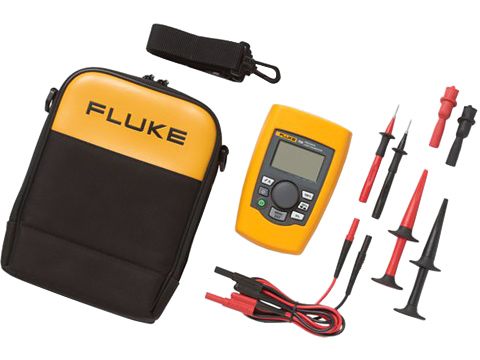

Items included with the Fluke 709H Loop Calibrator with HART Communications:
- Extended tooth alligator clip set
- Stackable lead set (model 75X-8014)
- Test Probes (model TP220)
- SureGrip Hook Clips (model AC280)
- HART cable
- Soft case
- Six AAA batteries (installed)
- Product manual CD-ROM
- Quick reference guide
- Safety information
