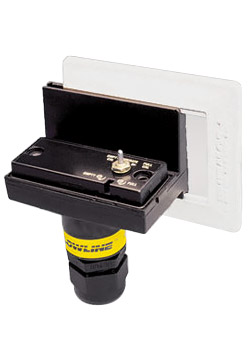

Flowline LP50 Switch Tek Level Switch

Non-Intrusive Capacitance Level Switch, level detection through plastic or fiberglass walls, polyethylene, polypropylene or PVDF adhesive 3M mounting brackets.

Flowline LP50 Switch Tek Level Switch
Flowline LP50 Switch Tek Level Switch

Starting at $300.00

View Company Reviews

Manufactured

By Flowline

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

LP50 Switch Tek LP50 Non Intrusive Capacitance Level Switch
Accuracy: ±1mm in water
Dielectric range: less than 10 constants
Conductance range: less than 100µ
Level detection through plastic or fiberglass walls
Contact type: (1) SPST relay
Process temp: -40 to 176°F (-40 to 80°C)
Contact output: Selectable NO / NC
Enclosure rating: NEMA4X (IP65)
Enclosure material: PSO
Contact rating: 60 VA, 1A maximum
Repeatability: ± 0.5mm in water
Cable jacket material: Polypropylene
Cable type: 4-conductor, shielded #22AWG
Cable length: 10’(3m)
Conduit entrance: 1/2” NPT
Tank mat. comp.: Non-metallic
Tank mounting: bracket w/3M adhesive, plastic thermal weld
Tank wall thickness: less than 1”(25mm)
Bracket material:
- 6005; Polyethylene
- 1005; Polypropylene
- 5005; PVDF

The Flowline LP50 Switch Tek Level Switch is a general purpose non-intrusive capacitance level switch that provides reliable liquid level detection of water based conductive liquids with non-coating and/or scaling characteristics with a 1A relay output. Media examples include hydrochloric, sulfuric acid and water. The liquid level sensor is bracket mounted on the exterior wall of non-metallic tanks and applied as a high level alarm or low level alarm.

Additional features and benefits of the Flowline LP50 Switch Tek Level Switch include:

Non-intrusive level detection through plastic or fiberglass walls
Installed with polyethylene, polypropylene or PVDF adhesive 3M mounting brackets
Rugged PSO enclosure rated NEMA4X with conduit connector
60VArelay selectable NO or NC via power supply wiring polarity
Ideal for high purity conductive liquids
Three different bracket materials makes attachment to tank easy
Great for non-metallic or FRP tanks up to 1" thick
Use as a high or low level switch
