Flowline LI40 PodView Local Level Indicator
Displays engineering units for level or volume level readings and shares power with an EchoPod ultrasonic sensor, including loop powered devices.
Overview
Features
- LCD, 6-digit with 4 relay indicator display
- Three button user interface
- Operating temp: -4 to 140°F (-20 to 60°C)
- 4-conductor, #22 AWG 4' (1.2m) cable; polyurethane
- NEMA 4 (IP65) faceplate enclosure (polycarbonate)
- No separate power supply required
- Provides level indication up to 15ft from sensor

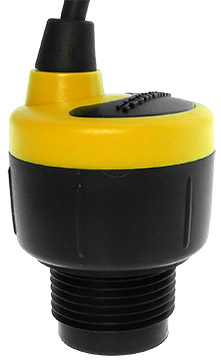

This product is an accessory for the following products:
Description
The Flowline LI40 PodView Local Level Indicator is a low cost general purpose level indicator that displays engineering units for level or volume level readings and shares power with an EchoPod ultrasonic sensor, including loop powered devices. The LI40 can be field mounted for local indication as well as be used to make simple setting changes to the sensor. The display can be easily attached to any EchoPod sensor that has been configured with WebCal 6.0 / firmware 50.0 or higher.
PodView displays sensor output and can reconfigure sensor set points on the fly. PodView draws power from the sensor and does not require any additional outside power supply.
Additional features of the Flowline LI40 PodView Local Level Indicator include:
- Operates with all EchoPod level sensors compatible with WebCal 6.0 software / firmware 50.0 or higher.
- No separate power supply required
- Use PodView to make simple adjustments to the EchoPod's sensor settings
- Provides level indication up to 15 feet from sensor
- Corrosion resistant NEMA 4 enclosure
- No configuration required. Simply wire the display directly to a compatible EchoPod sensor
- No additional power required
- Display can be transferred from sensor to sensor without any configuration changes
- Make quick set point changes without the need to connect back to a PC
