Waygate Technologies DMS Go+ Thickness Gauge

Name: Waygate Technologies DMS Go+ Thickness Gauge
Price: 4156.0 USD
Availability: InStock

Ultrasonic thickness gauge suited for a wide range of applications including measuring for corrosion in the oil and gas sector.

Starting at $4,156.00

View Company Reviews

Manufactured

By Waygate Technologies

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Specs

Features

DMS Go+ comes with D-pad (arrow key) control
0.010 to 25in (0.40 to 650mm) measuring range in steel
0.0098 to 0.6299in/µs (250 to 16,000m/s) mat. velocity
0.0001 or 0.01in (0.01 or 0.1mm) display resolution
LCD display, 800 x 480 pixels
USM Go flaw detector upgrade available
Flip function allows for left or right hand use
Vibration and shock tested
IP67 sealed for dust & water protection

What's in the Box

Lithium Ion "on-board" rechargeable battery
Battery charger /AC power supply
LCD screen protectors (10-pack)
SD card (8GB)
Transport case
Hand strap
Quick reference card
Operating manual on CD
Certificate of conformity
Couplant sample

The Waygate Technologies DMS Go Thickness Gauge combines an intuitive user interface, powerful data management, and an ability to provide accurate, reliable and comprehensive thickness inspection data. It has automatic gain control for excellent repeatability and corrosion monitoring. The main unit comes in three models:

DMS Go+ Basic

Uses A-scan verification and is compatible with high quality D-Meter dual element probes to handle a wide range of corrosion thickness applications.

DMS Go+ (Base)

Takes the basic features and adds B-scan (timed) for cross-sectional view and compatibility with single element probes for precision thickness measurement and temperature compensated readings up to 1000°F (540°C).

DMS Go+ Advanced

Can do all of the above and provides additional features of 6 data recording file structures plus 3D & 4D via UltraMATE and TopCoat/Auto-V measurement capabilities to eliminate removal of many coatings.

For comparison at a glance, view the DMS Go+ model differentiation table.

Waygate Technologies DMS Go Thickness Gauge Applications

Oil & Gas

Inspection and monitoring of corrosion in tubes, vessels and tanks
Measurement of remaining wall thickness through paint coatings

Power Generation

Inspection of complex geometry tubes
Monitoring boiler efficiency by measuring oxide scale in boiler tubes with special probe OSS-10

Aerospace

Maintenance checks

Metals Industry

Thickness measurement of austenitic materials

Waygate Technologies is formerly known as GE Inspection Technologies (GEIT)

Spec Sheets

Waygate Technologies DMS Go+ Thickness Gauge Datasheet PDF (2.7 MB)

Other

Waygate Technologies DMS Go+ Model Comparison Chart PDF (193 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Waygate Technologies Transducers

Transducers for use with Waygate Technologies ultrasonic thickness gauges and flaw detectors.

Starting at $606.00

Calibration

Waygate Technologies B-320 Calibration Block

4-step carbon steel block for calibrating thickness range.

In Stock

$304.00

Waygate Technologies B-310 Calibration Block

5-step carbon steel block for calibrating thickness range.

In Stock

$254.00

Upgrades

Waygate Technologies Upgrade DMS Go+ Model

Upgrade your existing DMS Go+ model.

Starting at $750.00

Waygate Technologies USM Go+ Upgrade

Flaw detector upgrade for an existing DMS Go+ ultrasonic thickness gauge.

Starting at $7,532.00

Cables

Waygate Technologies DMS Go Cables

Cables to connect transducers to Waygate Technologies DMS Go ultrasonic thickness gauge.

Some Models in Stock

Starting at $108.00

Software

Waygate Technologies UltraMATE LITE Software

Data management software program on CD for thickness gauges with data logger option.

$493.00

Holsters/Straps/Harnesses

Waygate Technologies CH-097 Chest Harness

$196.00

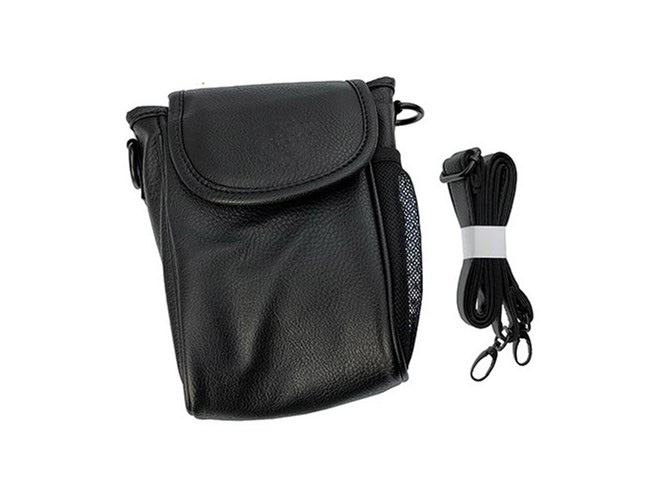

Waygate Technologies BA-098 Belt Attachment

$463.00

Waygate Technologies WS-342 Wrist Strap

$196.00

Batteries/Chargers

Waygate Technologies LI-138 Battery

Lithium ion battery.

In Stock

$312.00

Waygate Technologies LiBC-139 Battery Charger

Lithium ion battery charger / AC power supply.

In Stock

$312.00

Waygate Technologies EBC-040 Charger Adapter

External battery charger adapter for lithium ion battery.

In Stock

$318.00

Accessories

Please consider these optional accessories.

Waygate Technologies EK-492 Ergonomic Kit

Chest harness, wrist strap and belt holster.

$621.00

Waygate Technologies SD-969 Memory Card

2GB SD memory card.

$27.00

Waygate Technologies 021-026-315 Transport Case

Rugged and lockable carrying case for protection of instrument (USN 60, USM Go+, or DMS Go+) and accessories.

$593.00

Waygate Technologies DMS/USM Go Screen Protectors

Package of 10 clear screen overlays, field replaceable.

In Stock

$38.00

Waygate Technologies C120 Probe Cable

4ft cable without armor jacket for connecting the DA590 probe to the DM5E.

$395.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Crane Arm Pin Monitoring

The Background: The customer maintains large construction cranes and is looking for a way to determine the condition of the hinge pin that links the crane booms. Due to the immense weight of the booms, the pins can develop cracks which may eventually shear resulting in catastrophic failure.

The Problem: It is difficult to determine the condition of the pin, which is about 2” in diameter, when it’s installed due to its location inside the hinge assembly. Only the ends of the pin are visible and accessible.

The Solution: Using the GE Inspection Technologies DMS Go Thickness Gauge and a standard 5mhz probe, the customer can climb out to the hinge pin, while still in use, and measure its thickness down the shaft. The technician knows how long the pin is supposed to be and any thickness reading below this indicates the pin as cracked and separated. The crane can then be safely decommissioned for repair as needed.

Plastic Bottle Manufacturing

The Background: Our customer manufactures plastic bottles and seeks a method of spot checking the thickness of bottles as they come off the production line as part of their quality assurance protocol.

The Problem: Plastic returns a fairly weak signal which is compounded by the thinness of the bottle wall. This makes thickness testing a bit more difficult than usual.

The Solution: We recommended the GE Inspection Technologies DMS Go+ with the Alpha DFR-P transducer. The DMS Go+ is ideal for this application due to its high level of control over the gain and gate of the measurement, making it easier to identify weak signals. The DFR-P was chosen for its ability to read down to 0.005" in plastics.

Part Number	Model	Kit	Flaw Detector Upgrade	Price	Available
100N3519 Show Full Configuration	Base: A-scan, B-scan, & compatible with single element probes	DA501 probe and cable	Must be ordered separately with kit selection	$5,634.00	1 in stock
100N3520 Show Full Configuration	Base: A-scan, B-scan, & compatible with single element probes	DA512 probe with potted cable	Must be ordered separately with kit selection	$5,634.00	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options

Need Help? Call a Waygate - Borescope (Flow) engineer at 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
