Overview

Features

  • 100cc transparent reservoir
  • Compatible with distilled water or mineral oil
  • Controlled pressure release and adjustment
  • High pressure / priming selector

Description

The Druck PV212 Hydraulic Hand Pump is a high-quality hand pump designed to quickly and easily generate hydraulic pressures. The materials of construction make it compatible with most fluid media and an optional seal kit can be supplied for many aggressive applications. The built-in vernier provides excellent control and is easy to adjust even at high pressures.

The dual-stage pump includes a selector valve which increases the priming speed and greatly reduces the effort required to generate high pressures. An optional pressure relief valve can be supplied to provide protection to connected instruments.

An optional accessory kit is available that includes a hard carrying case with foam cutouts to protect the pump, a high pressure 1m hose kit, an empty hydraulic fill fluid bottle, as well as a 6 piece NPT adapter set with 4 female (1/8, 1/4, 3/8, and 1/2 inch) and 2 male (1/8 and 1/4 inch).

In Stock

Part Number Pump Pressure Kit Price Available
PV212-23-P
Generate up to 15,000 psi (1000 bar)
Pump only
$2,022.00 5 in stock
PV212-22-P
Generate up to 10,000 psi (700 bar)
Pump only
$1,376.00 2 in stock
PV212-22-TK-N
Generate up to 10,000 psi (700 bar)

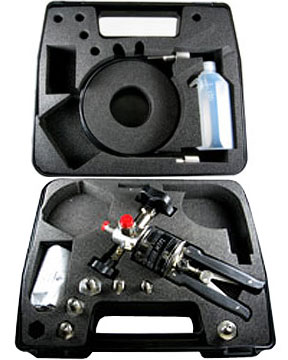

Pump w/ transit case, adapters, & hoses
$2,392.00 2 in stock
PV212-23-104S-N-23S
Generate up to 15,000 psi (1000 bar)

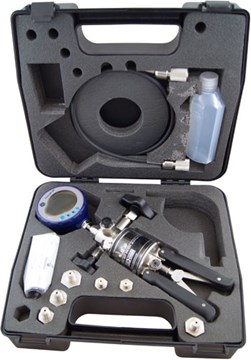

Pump & intrinsically safe DPI104S gauge w/ case, adapters, hoses, & PRV
$4,773.00 2 in stock
PV212-23-TK-N
Generate up to 15,000 psi (1000 bar)
Pump w/ transit case, adapters, & hoses
$3,038.00 2 in stock
PV212-22-104-N-20S
Generate up to 10,000 psi (700 bar)
Pump & DPI104 gauge w/ case, adapters, hoses, & PRV
$3,295.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-3 business days". Click here to select options
