Flo-tech USB Hydraulic System Analyzer
Stationary or portable tester for both industrial & mobile hydraulic systems measures flow, pressure & temperature.
Overview
Features
- ±1% of reading @ 32 cSt accuracy
- Field selectable US or metric readings
- High & low set point alarms for flow, pressure & temp
- Captures pressure spikes up to 10,000PSI
- Export saved data to programs such as Microsoft Excel®
- USB powered
- Calculates hydraulic power
- Continuous data logging or manual data capture
- Logs up to 12 hours
- Records alarm history

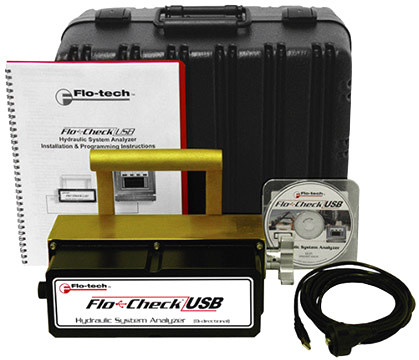

What's in the Box
- 16.4ft (5m) USB connection cable
- CD-Rom of the software utility
- Operating instructions
- Protective carrying case
Description
The Flo-tech Flo-Check USB simultaneously measures flow, pressure, temperature and power within a hydraulic system. This data is displayed and logged through a custom Windows®-based software application; data is received from the Analyzer through a standard USB cable (both software and cable are included with the unit).
The Flo-Check USB is ideal for testing, troubleshooting, and diagnosis in mobile and industrial hydraulic applications, and for setting hydraulic components such as pumps, valves, and motors. The unit is bi-directional and includes a low-resistance load valve and internal pressure relief discs.
The Flo-Check USB hydraulic system analyzer can be used as a stationary or portable tester for both industrial and mobile hydraulic system diagnostics, and analysis of the prognostic health of a hydraulic system. It features flow, pressure, and temperature sensors that are monitored by a data acquisition module. This module records the operating parameters of the system and transfers them to the user's laptop via the USB port.
The custom software utility is a Windows®-based application which is compatible with Windows Vista®, Windows XP and Windows 2000. This intuitive software configures the displayed information into user-selected engineering units and provides real-time graphics with instantaneous readings and trends for all three measurement parameters. The software also permits the data to be saved for export into a spreadsheet program.
The hydraulic system analyzer is powered through the USB port of a PC, making it easy to setup and ideal for portable applications. Interfaced to the PC application, the hydraulic analyzer offers a straightforward method of monitoring system parameters complete with data acquisition.
