Name: ProComSol HART Isolated USB Modem
Price: 450.0 USD
Availability: InStock

Starting at $450.00

View Company Reviews

Manufactured

By ProComSol

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

1500 Vdc opto isolation between HART and USB circuits
Compatible with DevCom2000, DevComDroid, and most HART Windows software
Boost feature for low-resistance loops (with DevCom2000)
Optional banana plug available (HM-USB-ISO-BP)
Operating temperature: 32°F to 122°F
Supports HART 4–7 and wirelessHART
Meets HCF_SPEC-54 specification
Self-powered from USB port
1-year warranty
CE certified

This product is an accessory for the following products:

ProComSol HART Communicator Software for PC

DevCom2000 software, when combined with a HART modem, converts your PC into a full featured HART communicator.

$900.00

ProComSol Windows HART Communicator Bundle

DevCom2000 software and USB HART modem kit to convert your PC into a HART communicator.

$1,250.00

INOR MESO-H Temperature Transmitter

HART compatible, intelligent 2-wire in-head temperature transmitter.

RETIRED

INOR MESO-L Temperature Transmitter

Universal HART-compatible 2-wire DIN Rail mount Temperature Transmitter.

RETIRED

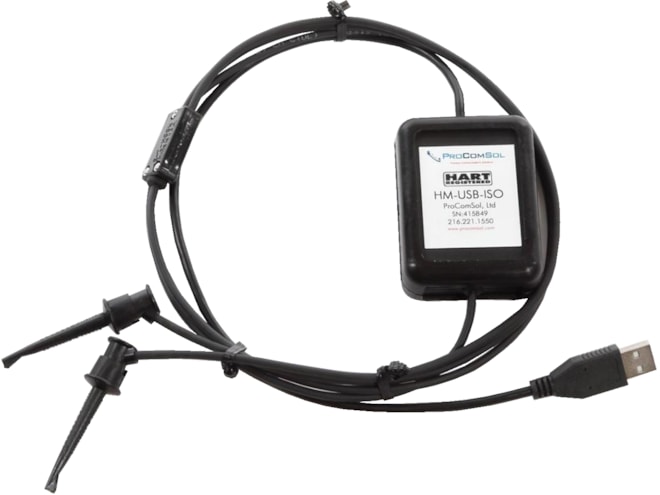

The ProComSol HART Isolated USB modem provides reliable, isolated communication between HART field devices and Windows or Android systems via a USB connection. Designed for field and bench use, the modem features 1500 Vdc opto isolation between the HART and USB circuits, ensuring safe and interference-free operation. It’s fully compatible with HART 4 through HART 7 and wirelessHART devices and meets the FieldComm Group’s HCF_SPEC-54 specification.

Self-powered through the USB port and requires no batteries or external power supply. It includes heavy-duty mini-grabber connectors and an integrated USB Type A connector. The ABS plastic enclosure with a rubber boot adds durability for field environments. It works seamlessly with popular HART configuration software such as DevCom2000 and DevComDroid and is supported on Windows 7 and later, as well as Android 4.3 and up. Optional models include banana plug connectors (HM-USB-ISO-BP), and custom cable lengths are available.

DevCom2000 software, when combined with a HART modem, converts your PC into a full featured HART communicator.

$900.00

Accessories

Please consider these optional accessories.

ProComSol Banana Jack Connector Kit

Four different connector types designed for use with BP option modems.

In Stock

$50.00

ProComSol HART Loop Resistor

250 Ohm HART Loop Resistor for HART Communications.

In Stock

$5.00

Part Number	Price	Available
HM-USB-ISO Show Configuration	$450.00	3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-3 business days". Click here to select options
