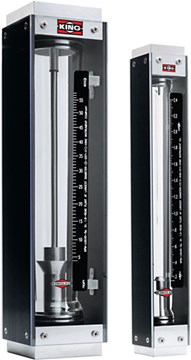

King Instrument 7459 Series Rotameter
Aluminum side plate rotameter with a 250mm scale borosilicate glass metering tube.
Overview
Features
- 0.22 to 100GPM (Water)or 0.9 to 350SCFM (Air)
- 10 inch (250mm) direct reading scale
- ±2% full scale accuracy
- 0.5% repeatability
- 200°F (93°C) (liquid) 250°F (121°C) (gases) max temp
- 350 psig max pressure (sizes 3 & 4)
- 175 psig (Size 5)
- 125 psig (Size 6, 8 & 9)
- 33 to 125°F (1 to 52°C) ambient temperature
- Conforms to ISA RP 16.6
Description
The King 7459 series rotameter is a side plate style construction rotameter with a 250mm scale borosilicate glass tube with aluminum side plates, polycarbonate shield. The connections are vertical FNPT. The fittings and internal components are standard 316L stainless steel. O-rings are available in Viton, Buna N, EPR, and Kalrez.
Documents
Applications
This product can be used in the following applications:
