PIE 820 / 820PM Multifunction Process Calibrator

Reads milliamp, voltage, frequency, thermocouples, RTDs & checks continuity, with panel mount option.

PIE 820 Multifunction Process Calibrator
PIE 820PM Multifunction Process Calibrator

Starting at $2,729.00

View Company Reviews

Manufactured

By PIE Practical Instrument Electronics

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs (2 Files)

Features

0.03% FS accuracy
Source & read 0 to 24mA
1mA rms at 20kHz source current
Troubleshoot loop & wiring problems
Checkout flow & vibration systems
Calibrate directly in °F or °C
CE compliant

This is the recommended replacement for the Altek TechChek 820 Multifunction Process Calibrator.

The PIE 820 / 820PM multifunction process calibrator combines all milliamp loop functions, sources and reads DC Volts and millivolts, 14 thermocouple types, RTD curves, ohms, and process frequency signals.

The PIE 820 / 820PM multifunction process calibrator sources and reads types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P (Platinel II) thermocouples. It also sources and reads Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850) Copper 10 & 50 Ohm, Nickel 100 and 120 Ohm RTDs.

All ranges have auto storing MIN/MAX readings and three output set points for fast calibration of zero, midpoint, and span. Advanced features include automatic detection of 2, 3, and 4 wire RTDs plus configurable automatic stepping and ramping.

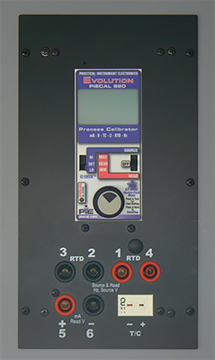

The PIE 820PM is the panel mount version of the PIE 820, and includes 8.75in x 4.75in aluminum mounting plate, screws, and an 110/120V AC adapter.

PIE 820 / 820PM Multifunction Process Calibrator:

PIE 820-BP: Includes rubber boot and NIST certificate
PIE 820: Includes rubber boot, carrying case, test leads and NIST certificate
PIE 820PM: Panel Mount PIE 820 multifunction calibrator

Spec Sheets

Manuals

PIE 820 Multifunction Process Calibrator Manual PDF (2.9 MB)

Batteries/Chargers

PIE Ni-MH Batteries and Charger

Ni-MH 1 hour charger with 4 Ni-MH AA batteries.

$126.00

Accessories

Please consider these optional accessories.

PIE RTD Wire Kit

2 red and 2 black leads with retractable shield banana plugs and spade lugs.

In Stock

$95.00

PIE 020-0236 Magnet and Hanging Strap

Hang your PIE calibrator from racks, cabinets, and from pipes.

In Stock

$20.00

Part Number	Price	Available
PIE 820 Show Configuration	$2,909.00	2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
