Overview

Features

  • Works on unshielded cables only
  • Wide range of detection; finds 80 V to 275 kV
  • One instrument fits all applications
  • Eight switch selectable voltage sensitivity ranges
  • Lightweight, minimizes sway at the end of long hot sticks
  • Audible and visual indication of live voltage
  • Self-test position ensures that all system functions and indicators are working properly by energizing the complete system
  • Designed for use with hot sticks incorporating a shotgun adapter
  • Powered by three standard Alkalkine C cell batteries

Description

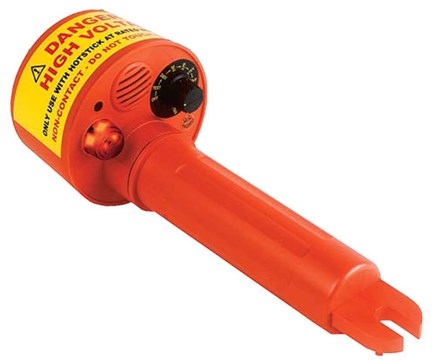

The AEMC 275HVD Voltage Detector is designed to detect the presence of high voltage without physical contact. An eight position rotary switch selects the detection range. As the sensor is moved closer to the voltage carrying conductor its sensor head picks up the radiated electric field. Once the range threshold is reached, the buzzer sounds and a bright red warning light warns the operator of live conductors.

AEMC 275HVD Voltage Detectors are powered by three standard alkaline "C" cell batteries and can be used both indoors and out. A universal spline on the back-end facilitates attachment to any standard hot stick. A self-test position ensures that all circuitry and indicators are working properly before use.

Applications for the AEMC 275HVD Voltage Detector:

  • Non-contact detection of live voltages
  • Check and detect live high voltage cables
  • Find faults in cables
  • Check grounding equipment
  • Service neon lighting
  • Trace live wires
  • Check high frequency radiation
  • Detect residual or induced voltages

The AEMC 275HVD Voltage Detector ships complete with:

  • Shotgun adapter
  • (3) "C" cell batteries
  • Carrying case (padded)
  • Manual
AEMC 275HVD Voltage Detector Specifications
Electrical
Ranges 240 V, 2 kV, 6 kV, 11 kV, 22 kV, 33 kV, 132 kV, 275 kV
Detection Range selected @ app. 10" (25 cm); 45% to 65% of range @ app. 4" (10 cm). Greater detection distance obtained with lower range setting (higher sensitivity) than working voltage
Detection Frequencies 40 to 70 Hz
Mechanical
Self Test User selectable
Indicators Bright red LED and audible buzzer
Power Source Three 1.5 V C cell batteries
Dimension 3.78 x 9" (96 x 229 mm)
Weight 1.30 lbs (0.59 kg) batteries included
Environmental
Operating Temperature 5°F to 130°F (-15°C to 55°C)
Storage Temperature -4°F to 150°F (-20°C to 65°C)
Humidity 0 to 93% RH @ 104°F (40°C)
