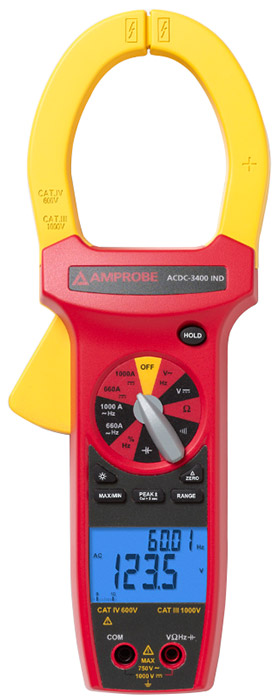

Amprobe ACDC-3400 IND Clamp Meter

Name: Amprobe ACDC-3400 IND Clamp Meter
Price: 702.99 USD
Availability: BackOrder

CAT IV safety rated industrial True RMS clamp meter.

$702.99

View Company Reviews

Part Number

ACDC-3400 IND

Manufactured

By Amprobe

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

DC Voltage
- Ranges: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
- Accuracy: ± (0.5 % rdg + 2 dgts)
AC Voltage
- Ranges: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 750 V
- Accuracy: ± (1.5 % rdg + 8 dgts)
AC/DC Current
- Ranges: 660.0 A, 1000 A
- Accuracy: up to ± (2.0 % rdg + 5 dgts)
Resistance
- Ranges: 660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ, 6.600MΩ, 66.00MΩ
- Accuracy: up to ± (1% rdg + 5 dgts)
Capacitance
- Ranges: 6.600 nF, 66.00 nF, 660.0 μF, 6.600 μF, 66.00 μF, 660.0μF, 6.6 mF
- Accuracy: up to ± (3.0 % rdg + 10 dgts)
Frequency
- Ranges: 66.00 Hz, 660.0 Hz, 6.600k Hz, 66.00 kHz, 660.0 kHz, 1.000 MHz
- Accuracy: ± (0.1 % rdg + 3 dgts)
Continuity: Audible Indication < 30 Ω
Duty cycle
Diode Test current: 1.0 mA (approximate)
Overload protection
3-3/4 digit LCD with a 66-segment analog bar-graph
Jaws accommodates conductors up to 2” in diameter
CAT IV 600 V, CAT III 1000 V safety rating

The Amprobe ACDC-3400 IND is a CAT IV rated clamp meter ideal for industrial applications and utilities that require an extra level of safety. The meter includes True RMS sensing for accuracy and dependability and extra large jaws to accommodate wide diameter wires.

The Amprobe ACDC-3400 IND measures AC current up to 1000 A, voltage up to 750VAC / 1000VDC, frequency, resistance, capacitance and duty cycle. Measurements are displayed on the 3-3/4 digit LCD with a 66-segment analog bar-graph. The ACDC-3400 IND has many features including peak hold, relative zero, an audible continuity test, auto and manual ranging, auto power off, data hold, diode test and overload protection. Amprobe ACDC-3400 IND clamp meters have a large jaw opening and accommodates conductors up to 2 inches (51mm) in diameter.

The Amprobe ACDC-3400 IND ships complete with:
