Fluke 719 Electric Pressure Calibrator

Pressure calibrator with innovative built-in electric pump for one-handed pressure calibration.

Fluke 719 Electric Pressure Calibrator

Starting at $4,816.99 Found a better price? Let us match.

View Company Reviews

Manufactured

By Fluke

Includes

FREE UPS 2nd Day Air Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Features

Fluke 719 30G
- Range: -12 to 36 PSI
- Resolution: 0.001 PSI,
- Accuracy: up to 0.025%
Fluke 719 100G
- Range: -12 to 120 PSI
- Resolution: 0.01 PSI
- Accuracy: up to 0.025%
mA:
- Range: 0 to 24 mA
- Accuracy: 0.015 % Rdg + 2 counts
- Max load: 1000Ω; 750 Ω ohm in HART mode
Pump to:
- 30 PSI in less than 15 seconds (1m of 1/8" test hose)
- 100 PSI in less than 45 seconds (1m of 1/8" test hose)
5000 pump cycles between rebuilds
Pump life: 20,000 calibration cycle
Safety: CSA C22.2 No. 1010.1:1992
EMC: EN50082-1:1992 and EN55022:1994 Class B

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

The Fluke 719 electric pressure calibrator features an innovative, built-in electric pump. Now you can calibrate and test pressure devices quickly and easily with one hand. Use the programmable pump limit settings to eliminate over-pressurization and to set 'pump to' pressure values.

The Fluke 719 calibrator has a unique cleanout port design that reduces pump failures and makes the Fluke 719 easy to clean without repair. The compact, lightweight form, combined with one-handed use, makes this pressure calibrator the ideal tool for busy process professionals.

The Fluke 719 electric pressure calibrator features best in class pressure measurement accuracy of 0.025% and mA accuracy of 0.015%. The pressure adjust vernier increases calibrator precision and the variable release rate bleed valve allows for easy pressure adjustment. Together these features put the Fluke 719 at the ideal performance level for high accuracy transmitter calibration.

The Fluke 719 electric pressure calibrator is available in two pressure ranges; 30 PSI and 100 PSI. The programmable pump limit feature eliminates over-pressurization and allows the user to program target pressures for pumping. The Fluke 719 can source mA signals with simultaneous pressure measurement to test valves and I/Ps. It can also simulate mA signals to troubleshoot 4-20 mA loops.

The Fluke 719 electric pressure calibrator ships complete with:

TL75 test leads
AC72 alligator clip set
Push fit connectors
Translucent test hose
Product overview manual (print)
User's manual (CD-ROM)

Documents

Sensors/Probes

Fluke 750P Absolute Pressure Module

Fluke 750P Absolute Pressure Module

Wide pressure range selection, up to 1500 psia, digital communication to calibrators.

Starting at $2,510.99

Fluke 750P Differential Pressure Modules

Fluke 750P Differential Pressure Modules

Differential pressure modules in 5 models with ranges up to 15 psi, digital communication to calibrators.

Starting at $2,247.99

Fluke 750P Dual Pressure Module

Fluke 750P Dual Pressure Module

Wide pressure ranges available, up to 300 psi, digital communication to calibrators.

Starting at $2,510.99

Fluke 750P Gauge Pressure Module

Fluke 750P Gauge Pressure Module

±0.0175% reference uncertainty, 6-month and 1-year specifications, digital communication to calibrators.

Starting at $2,247.99

Fluke 750P High Pressure Module

Fluke 750P High Pressure Module

±0.0175% reference uncertainty, ranges up to 10000 psi (700 bar), digital communication to calibrators.

Starting at $3,271.99

Fluke 750P Reference Pressure Modules

Fluke 750P Reference Pressure Modules

Wide variety of pressure ranges available, up to 10,000 psi, with digital communication to calibrators.

Starting at $2,510.99

Fluke 750P Vacuum Pressure Module

Fluke 750P Vacuum Pressure Module

Choose -5 psi (-350 mBar) or -15 psi (-1 bar) range, digital communication to calibrators.

Starting at $2,510.99

Cases

Fluke C101 Hard Case

Fluke C101 Hard Case

Tough polyprophylene exterior shell with two layers of pre-cut foam that can be customized.

Fluke C116 Soft Carrying Case

Fluke C116 Soft Carrying Case

Adjustable padded space with a moveable Velcro divider for protection of two test tools.

Fluke C345 Soft Case

Fluke C345 Soft Case

Polyester carrying case with movable internal divider and outer zippered pouch with elastic strap and mesh accessory retainer.

Fluke C789 Soft Case

Fluke C789 Soft Case

Large fabric carrying case with 3 compartments, includes removable handle and shoulder strap.

Fluke C1600 Hard Case

Fluke C1600 Hard Case

Lockable, molded plastic box designed to carry Fluke gear.

Fluke C550 Tool Bag

Fluke C550 Tool Bag

Rugged ballistic cloth with heavy duty hardware, including a steel reinforced frame.

Fluke C280 Soft Case

Fluke C280 Soft Case

Polyester carrying case, inner front pocket with closure and dual pouch pockets for test tools and accessories .

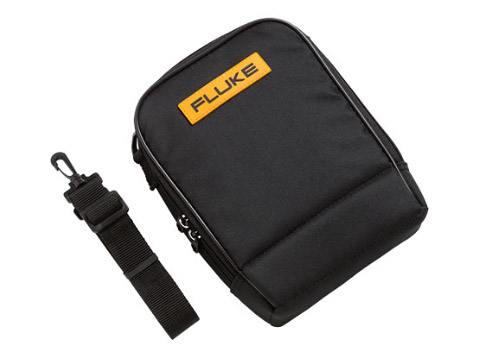

Fluke C115 Soft Carrying Case

Fluke C115 Soft Carrying Case

Two padded pockets for protection of two test tools.

Accessories

Please consider these optional accessories.

Fluke 700PCK Pressure Module Calibration Kit

Fluke 700PCK Pressure Module Calibration Kit

Calibrate your pressure modules at your facility using your own precision pressure standards.

Fluke Professional Tool Backpack

Fluke Professional Tool Backpack

Durable high-quality polyester, injection molded plastic bottom base, six storage compartments.
