Overview

Features

  • Up to 30V and 24mA DC
  • 0 to 3200Ω resistance
  • Up to 10kHz frequency
    • 1V peak-to-peak-minimum senitivity
  • Combine with a 750P module for pressure
  • Store frequently used test setups for later use
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

  • AC72 alligator clips
  • Stackable test leads
  • TL75 test leads
  • User manuals
  • NIST traceable calibration report and data

Description

The Fluke 725 multifunction process calibrator is a powerful yet easy-to-use field calibrator. The measure and source functions test and calibrate almost any process parameter and displays input and output simultaneously on the screen.

Measure volts, mA, RTDs, thermocouples, frequency and ohms to test sensors and transmitters. Volts, mA, thermocouples, RTDs, frequency and ohms can be sourced or simulated. Measure or source pressure using Fluke 750P series modules.

The 725 can also source milliamps with simultaneous pressure measurement to conduct valve and I/P tests, support flow meter testing with its frequency and CPM functions, and perform fast linearity tests with the auto step and auto ramp features.

Accessories

Application Modules

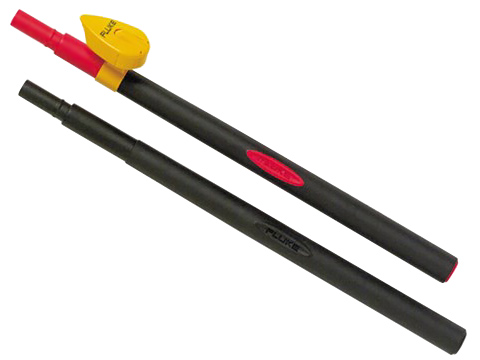

Probes

Test Leads

Cables

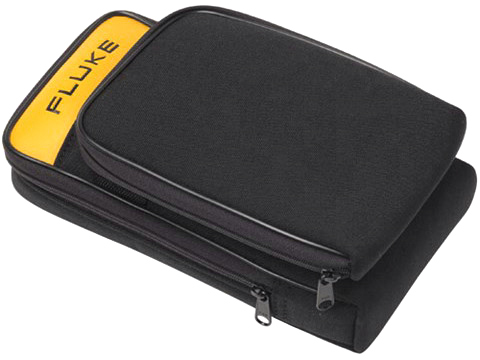

Cases

Accessories

Please consider these optional accessories.
