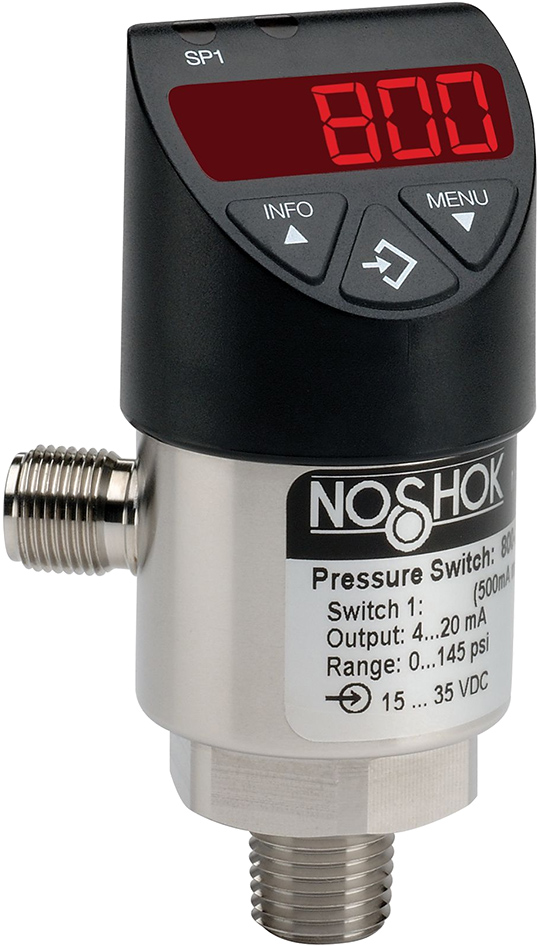

NOSHOK 800 Series Pressure Transmitter

Name: NOSHOK 800 Series Pressure Transmitter
Price: 631.27 USD
Availability: InStock

Provides continuous pressure monitoring and allows the programming of the set points without applying pressure.

Starting at $631.27

View Company Reviews

Manufactured

By NOSHOK

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Ranges up to 7,500 psi
4 to 20mA or 0 to 10VDC output signal
316L Stainless steel wetted parts
4-digit LED display, can rotate >300°
≤5ms response time
≤0.5 % of span accuracy
Service life of 100 million load cycles
CE compliant to suppress RFI, EMI, and ESD
RoHS compliant

The NOSHOK 800 series electronic indicating pressure switch/transmitter provides continuous pressure monitoring and allows programming of set points without applying pressure.

The 4-digit LED display can be rotated for optimal visibility from nearly any direction. Simple, two button operation makes it easy to adjust set points, contact functions (normally open / normally closed), reset points, contact types (NPN / PNP) and switching function (hysteresis / gate).

Applications:

Hydraulic and Pneumatic Systems
Molding and Extruding Equipment
Stamping and Forming Presses
Pumps and Compressors
HVAC
Power Generation
Transportation Equipment

Spec Sheets

NOSHOK 800 Series Pressure Transmitter/Switch Datasheet PDF (458 KB)

Manuals

NOSHOK 800 Series Pressure Transmitter/Switch Manual PDF (954 KB)

Manufacturer Stock

Items from manufacturer stock generally ship in 5-7 business days. Expedited shipping is available.

Part Number	Switch Function	Process Connection	Pressure Type	Switch Adjustment Range	Price	Available
800-2-2-300-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 300 psig	$710.90	206 in stock
800-2-2-300-2-ST8 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 300 psig	$725.60	206 in stock
800-1-2-14.5vac-2 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Compound	-14.5 to 0 psig	$666.57	28 in stock
800-2-2-5000-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 5,000 psig	$710.90	13 in stock
800-2-2-5000-2-ST8 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 5,000 psig	$725.60	13 in stock
800-3-2-5000-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 0 to 10VDC output	1/4in NPT male	Gauge	0 to 5,000 psig	$710.90	7 in stock
800-3-2-5000-2-ST8 Show Full Configuration	1 normally open or closed (PNP/NPN) with 0 to 10VDC output	1/4in NPT male	Gauge	0 to 5,000 psig	$725.60	7 in stock
800-4-2-1000-3 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 1,000 psig	$751.16	6 in stock
800-4-2-200-3 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 200 psig	$751.16	6 in stock
800-4-2-5000-3 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 5,000 psig	$751.16	5 in stock
800-4-2-5000-3-ST8 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 5,000 psig	$765.86	5 in stock
800-1-2-3000-2 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Gauge	0 to 3,000 psig	$631.27	4 in stock
800-1-2-3000-2-ST8 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Gauge	0 to 3,000 psig	$645.97	4 in stock
800-2-2-100-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 100 psig	$710.90	4 in stock
800-2-8-50-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	1/2in NPT male	Gauge	0 to 50 psig	$710.90	4 in stock
800-4-2-160-3 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 160 psig	$751.16	4 in stock
800-4-2-160-3-ST8 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 160 psig	$765.86	4 in stock
800-1-2-300-2 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Gauge	0 to 300 psig	$631.27	3 in stock
800-1-2-300-2-ST8 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Gauge	0 to 300 psig	$645.97	3 in stock
800-2-45-3000-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	SAE J1926-3:7/16-20	Gauge	0 to 3,000 psig	$751.77	3 in stock
800-2-45-3000-2-ST8 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	SAE J1926-3:7/16-20	Gauge	0 to 3,000 psig	$766.47	3 in stock
800-3-2-300-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 0 to 10VDC output	1/4in NPT male	Gauge	0 to 300 psig	$710.90	3 in stock
800-3-45-500-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 0 to 10VDC output	SAE J1926-3:7/16-20	Gauge	0 to 500 psig	$751.77	3 in stock
800-4-2-10-3 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 10 psig	$751.16	3 in stock
800-4-2-10-3-ST8 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 10 psig	$765.86	3 in stock
800-4-2-100-3 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 100 psig	$751.16	3 in stock
800-4-45-5000-3 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	SAE J1926-3:7/16-20	Gauge	0 to 5,000 psig	$792.03	3 in stock
800-1-2-1000-2 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Gauge	0 to 1,000 psig	$631.27	2 in stock
800-1-2-5000-2 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Gauge	0 to 5,000 psig	$631.27	2 in stock
800-1-2-5000-2-ST8 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Gauge	0 to 5,000 psig	$645.97	2 in stock
800-1-2-7500-2 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Gauge	0 to 7,500 psig	$631.27	2 in stock
800-1-2-7500-2-ST8 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Gauge	0 to 7,500 psig	$645.97	2 in stock
800-2-2-10-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 10 psig	$710.90	2 in stock
800-2-2-10-2-ST8 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 10 psig	$725.60	2 in stock
800-2-2-14.5/30-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	1/4in NPT male	Compound	-14.5 to 30 psig	$746.20	2 in stock
800-2-2-2000-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 2,000 psig	$710.90	2 in stock
800-2-45-1000-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	SAE J1926-3:7/16-20	Gauge	0 to 1,000 psig	$751.77	2 in stock
800-3-2-14.5/15-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 0 to 10VDC output	1/4in NPT male	Compound	-14.5 to 15 psig	$746.20	2 in stock
800-3-2-30-2 Show Full Configuration	1 normally open or closed (PNP/NPN) with 0 to 10VDC output	1/4in NPT male	Gauge	0 to 30 psig	$710.90	2 in stock
800-4-2-3000-3 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 3,000 psig	$751.16	2 in stock
800-4-2-3000-3-ST8 Show Full Configuration	2 normally open or closed (NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 3,000 psig	$765.86	2 in stock
800-1-2-160-2 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Gauge	0 to 160 psig	$631.27	1 in stock
800-1-2-160-2-ST8 Show Full Configuration	2 normally open or closed (PNP/NPN)	1/4in NPT male	Gauge	0 to 160 psig	$645.97	1 in stock
800-2-2-500-2-ST8 Show Full Configuration	1 normally open or closed (PNP/NPN) with 4-20mA output	1/4in NPT male	Gauge	0 to 500 psig	$725.60	1 in stock
800-5-2-30-3 Show Full Configuration	2 normally open or closed (PNP/NPN) with 0 to 10VDC output	1/4in NPT male	Gauge	0 to 30 psig	$751.16	1 in stock
800-5-2-5000-3 Show Full Configuration	2 normally open or closed (PNP/NPN) with 0 to 10VDC output	1/4in NPT male	Gauge	0 to 5,000 psig	$751.16	1 in stock
800-5-2-5000-3-ST8 Show Full Configuration	2 normally open or closed (PNP/NPN) with 0 to 10VDC output	1/4in NPT male	Gauge	0 to 5,000 psig	$765.86	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
