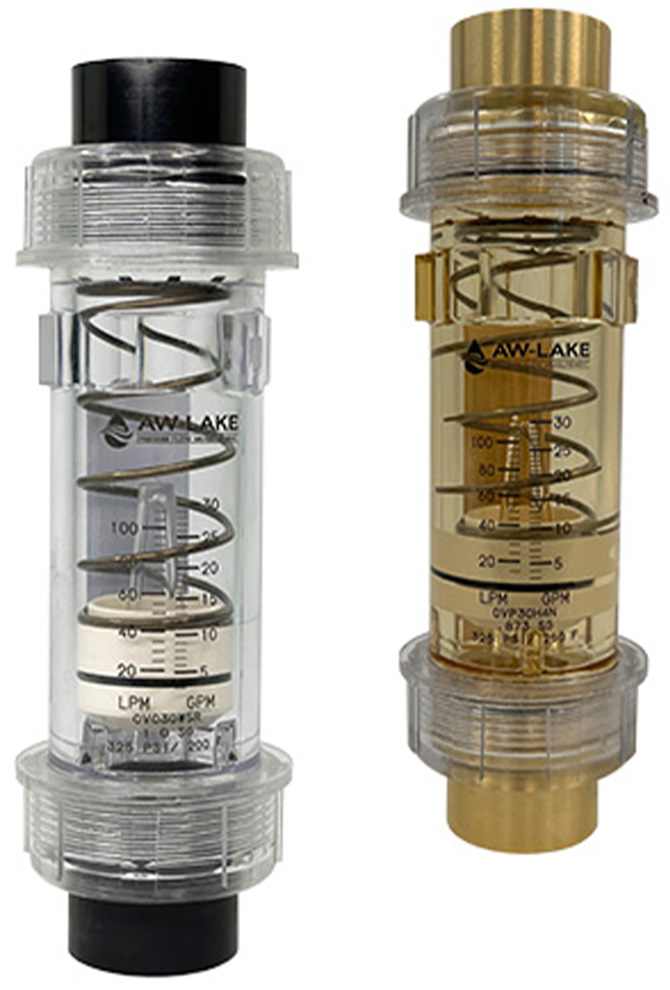

AW-Lake ClearView Flow Meter

Name: AW-Lake ClearView Flow Meter
Price: 139.0 USD
Availability: InStock

Economical way to monitor municipal pressure water flows, observe case drain flows, and verify pump outputs.

Starting at $139.00

Effective April 8th, 2025 AW-Lake has added a surcharge to this product. A 10.8% surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By AW-Lake

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

Measuring Accuracy: ±5% of full-scale
Repeatability: ±1% of full-scale
Flow Measuring Ranges: 0.5 to 5 GPM, 1 to 10 GPM, 1 to 15 GPM or 3 to 30 GPM
Turn Down Ratio: 10:1 (All Ranges)
Maximum Operating Pressure: 325 psig (22.4 Bar)
Maximum Operating Temperature: 200°F (93°C) (Polycarbonate body); 250°F (121°C) (Polysulphone body)
Filtration Requirements: 74 Micron (200 US Mesh) Minimum

The AW-Lake ClearView flow meters provide an economical way to monitor municipal pressure water flows, observe case drain flows, and verify pump outputs. AW-Lake ClearView flow meters feature a compact and rugged design, measuring less than 8-1/4" long and 2-7/16" in diameter, with a rigid tube and union nut design. The AW-Lake ClearView flow meters allow for horizontal, vertical, or inverted installation as well.

With a ±5% full-scale accuracy, and a ±1% full-scale repeatability, AW-Lake ClearView flow meters offer a reliable solution to your flow monitoring needs. You can select from 0.5 to 5 GPM, 1 to 10 GPM, 1 to 15 GPM or 3 to 30 GPM, depending on which flow measuring range best fits your needs. All ranges of the AW-Lake ClearView flow meters feature a 10:1 turn down ratio.

Other Features of the AW-Lake ClearView Flow Meters

A variety of wetted materials of construction and media calibrations
A variable-area piston metering assembly
A high contrast scale/indicator

The AW-Lake ClearView Flow Meter has a variable-area piston to provide accurate, dependable flow rate indication. The high contrast scale/indicator provides an easy-to-read flow rate measuring resolution along with dual units of GPM and LPM.
