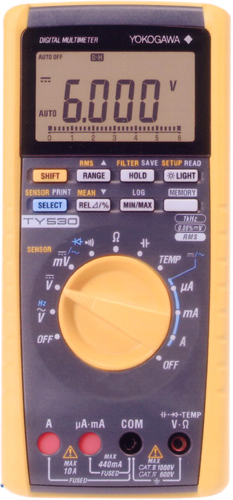

Name: Yokogawa TY500 Series Digital Multimeter
Price: 540.0 USD
Availability: BackOrder

Yokogawa TY500 Series Digital Multimeter — Yokogawa TY520 Digital Multimeter

Yokogawa TY520 Digital Multimeter
Yokogawa TY530 Digital Multimeter

Starting at $540.00

Effective September 5th, 2025 Yokogawa has added a 7.8% surcharge to this product. The surcharge will appear as a separate line item on each sales order.

View Company Reviews

Manufactured

By Yokogawa

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 4-6 business days

Features

Basic Accuracy: 0.09%
True RMS measurement
Measures: AC/DCV (1kV), Amps (10A), resistance, frequency, temperature, capacitance, continuity
3.5 digit, 7-segment display
6,000 count with 31-segment bar graph display
Data, Auto & Range hold
Low-pass filter (LPF)
Maximum, minimum & average values
Safety standards EN61010-1, 1000V CAT III, 600V CAT IV
Data logging capability for up to 1,600 data points (TY530 only)

Yokogawa TY500 Series digital multimeters offer high precision with a basic accuracy of 0.09% and true RMS measurement. The backlit 3.5 digit, 7-segment display makes for easy readability, and the Yokogawa TY500 Series digital multimeter also features a 6,000 count with 31-segment bar graph display. This Yokogawa multimeter has the ability to measure AC/DCV (1kV), Amps (10A), resistance, frequency, temperature, capacitance and continuity.

Other features of the Yokogawa TY500 Series digital multimeter includes data, auto and range hold, low-pass filter (LPF), displays of maximum, minimum and average values along with safety shutters. The safety shutters will prevent erroneous insertion of test leads into current measurement terminals. The Yokogawa TY500 Series digital multimeter includes an optional data logging-mode memory capable of saving up to 1600 data points.

The Yokogawa TY500 Series digital multimeter offers safety standards of EN61010-1, 1000V CAT III, and 600V CAT IV. These Yokogawa meter includes 4 AA (R6) dry cells, one test lead set, 10A/1000V and 440mA/1000V fuses (440mA installed) and an instruction manual.
