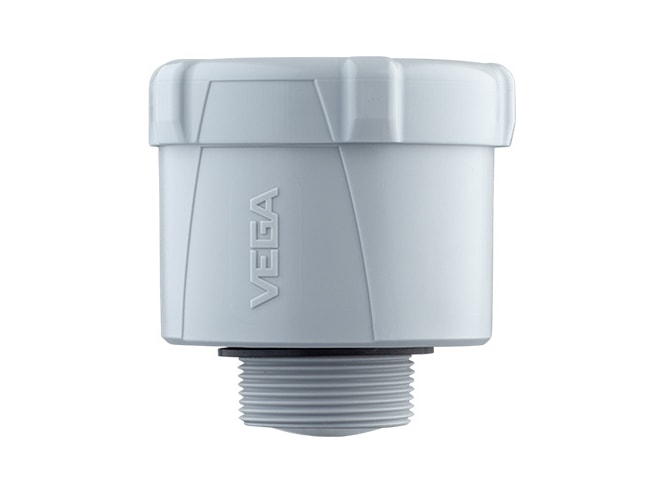

VEGA VEGAPULS Air 41 Autarkic Radar Sensor

Name: VEGA VEGAPULS Air 41 Autarkic Radar Sensor
Price: 1258.0 USD
Availability: BackOrder

Autarkic sensor with measured value transmission by radio technology for continuous level measurement for liquids and bulk solids, range up to 15m.

Starting at $1,258.00

Effective October 1st, 2025 VEGA has added a 9% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By VEGA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Measuring range up to 15m (49.21ft)
Deviation ≤ 2mm
Beam angle 8°
Frequency 80GHz
Process temperature -20 to 60°C (-4 to 140°F)
Process pressure -1 to 2bar (-100 to 200kPa / -14.5 to 29psig)
Radio technology NB-IoT (LTE-Cat-NB1), LTE-M (LTE-CATM1), LoRa WAN
Protection rating IP66/IP68 (0.2 bar) according to IEC 60529, type 6x according to NEMA

The VEGA VEGAPULS Air 41 autarkic radar sensor is ideal for all stand-alone applications with bulk solids and liquids. It is particularly suitable for level measurement in mobile bulk solids silos holding dry mortar, concrete or plaster, and for liquid tanks of all kinds. The VEGAPULS Air 41 represents an attractive, low-cost solution as it is easy to install and put into operation and requires no additional power supply.

The sensor emits a radar signal through the antenna. The emitted signal is reflected by the medium and received as an echo by the antenna. The resulting level is converted into a respective output signal and wirelessly transmitted. Depending on the availability of the radio networks, the device transmits its measured values wirelessly to an LTE-M (LTE-CAT-M1) or NB-IoT (LTE-CAT-NB1) mobile radio or a plant-side LoRaWAN network.
