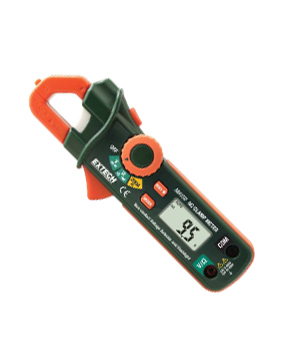

Extech MA120 / MA150 200A Mini Clamp Meters
200A mini clamp meter with built-in voltage detector & flashlight.
Overview
Features
- Measures 200A AC Current up to 100mA resolution
- 3% basic ACA accuracy
- 0.7" (18mm) jaw opening; 300MCM cable size
- 2000 count LCD display
- Non-contact AC Voltage detector (120/240VAC, 50/60Hz) via clamp tip
- Built-in white LED flashlight
- Measures Frequency up to 1kHz with 0.01Hz resolution
- Autoranging with Auto Power Off
- Data Hold (MA 120)
- Overload protection for all ranges
- Overrange and low battery indicators
What's in the Box
- 2 AAA batteries
Description
The 200A Extech MA120 / MA150 mini clamp meter and voltage detector increases the safety of the user by including a built-in voltage detector in the jaw tip. Both models are able to able to measure 200A AC current up to 100mA resolution within ±3% accuracy. The Extech MA120 / MA150 mini clamp meter also includes overload protection for all ranges and overrange and low battery indicators on the display.
The Extech MA150 mini clamp meter also has some special features including 600V AC/DC voltage capabilities, resistance measurement, and diode and continuity testing. The Extech MA120 / MA150 mini clamp meter is ruggedly constructed, weighs only 6 oz., and includes a built-in flashlight.
