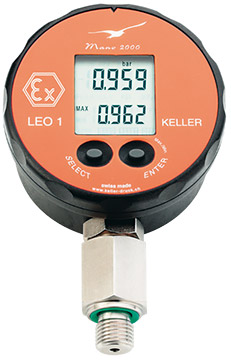

Keller LEO1 Pressure Gauges

Compact digital pressure gauges range from vacuum to 15,000 psi with 0.1% FS accuracy at room temperature.

Starting at $355.00

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • 0.2% FS accuracy for Total Error Band (0 to 50°C)
    • 0.1% FS accuracy at room temperature
  • 11 ranges available between -1 to 1000 bar, -14.5 to 15,000 psi
  • 5 selectable pressure units
  • All stainless steel (316) welded pressure cavity
  • Four-digit resolution
  • Simple battery replacement
  • Peak hold facility
  • Max and min read facility
  • Auto switch off or continuous use selection
  • Convenient 3" diameter face
  • Ideal replacement for analog test gauges

Do you need to calibrate your Keller LEO1 Pressure Gauge?
Our Calibration Lab can help. Fill out our Calibration Request Form today.


Complete Digital Pressure Calibrator Kits Available!

Digital Pressure Calibrator Kits

Kit Includes:

  • LEO 1 Digital Gauge
  • Hand Pump
  • Test Hose Kit
  • NPT Adapter Kit
  • Carrying Case

The Keller LEO1 digital pressure gauge offers an accurate and convenient replacement to standard analog pressure gauges. Available in five standard ranges, these test gauges can display a variety of pressure units including bar, mbar, kg/cm2, psi, and MPa.

A compact instrument, the LEO1 digital pressure gauge is ideally suited as a master test gauge for operation with Keller's pneumatic or hydraulic pressure pumps, enabling simplified and efficient calibration.

The measuring element of the pressure gauge is a fully isolated piezo-resistive pressure transducer chosen for its stability, high accuracy, and reliability. The Keller LEO1 digital pressure gauge is well-suited for both static and dynamic applications and is capable of capturing transient pressure pulses with durations of only microseconds.

The Keller LEO2 is also available as a standard or intrinsically safe version, 94/9/CE. Classification: EX II 1 G EEx ia IIC T6 or T5. The EEx ia version of LEO1 Digital Pressure Gauge incorporates an additional protection switch. Functions, ranges, and accuracy are identical to the standard version.

Protection

Keller Protective Rubber Boot
Keller Protective Rubber Boot

Protective rubber boot for LEO1, LEO3 and LEX1 pressure gauges.

$16.00

Cases

Keller 309030.0003 Carrying Case
Keller 309030.0003 Carrying Case

Soft carrying case (fanny pack) for digital pressure gauges.

Call for pricing

Accessories

Please consider these optional accessories.

Keller K-114B USB Converter
Keller K-114B USB Converter

Interface converter with binder socket 680 / 5-pin, software CD and USB connection cable.

$195.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Air Rifle Pressure

The Background: Our customer is an air rifle enthusiast who enjoys customizing and perfecting his guns. He is looking for a better way to measure the pressure inside air tanks used as the propellant.

The Problem: The customer’s preferred gun has interchangeable barrels of various calibers, each of which performs best with specific air pressures. The manometer provided with the air rifle is cheap and not accurate enough for the customer.

The Solution: The Keller LEO1 provided an economical, yet highly accurate, solution to the customer’s problem. The LEO1 allows him to accurately fill his air rifle with the necessary pressure corresponding to the barrel of choice at that time.

Part Number Reference Pressure Pressure Range Price Available
LEO1-PAA-31-1/4NPT
Show Full Configuration
0 bar abs (vacuum)
0 to 31 bar, 0 to 449.6 psi
 $386.00 7 in stock
LEO1-PA-1000-1/4NPT
Show Full Configuration
1 bar absolute
0 to 1000 bar, 0 to 15,000 psi
 $444.00 2 in stock
LEO1-PA-300-1/4NPT
Show Full Configuration
1 bar absolute
0 to 300 bar, 0 to 4500 psi
 $386.00 2 in stock
LEO1-PAA-4-1/4NPT
Show Full Configuration
0 bar abs (vacuum)
0 to 4 bar, 0 to 58 psi
 $355.00 2 in stock
LEO1-PA-700-1/4NPT
Show Full Configuration
1 bar absolute
0 to 700 bar, 0 to 10,000 psi
 $444.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 8-10 weeks ". Click here to select options
