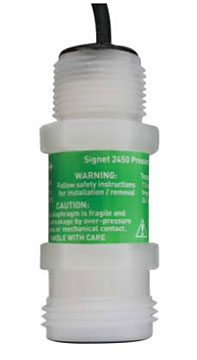

GF Signet 2450 Pressure Sensor

Name: GF Signet 2450 Pressure Sensor
Price: 743.4 USD
Availability: BackOrder

Pressure sensor for corrosive fluids.

Starting at $826.00 Starting at $743.40

View Company Reviews

Manufactured

By Georg Fischer / GF Signet

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Signet Sensor Serial Link (S³L) or 4 to 20mA Outputs
1/2 in male union process connection
One-piece injection molded PVDF body
Flush ceramic diaphragm
Dual threads for in-line or submersible installation
Three (3) Pressure Ranges

The GF Signet 2450 pressure sensor has a one-piece injection molded SYGEF © PVDF body and ceramic diaphragm for superior compatibility in corrosive liquids. Three (3) pressure versions allow for optimal resolution matching. Solid state circuitry eliminates drift (no internal potentiometers.)

GF Signet 2450 pressure sensors offer built-in temperature compensation, which provides outstanding accuracy over wide temperature ranges. These sensors are available with S³L (Signet Sensor Serial Link) digital output or field scaleable 4 to 20mA output. Dual threaded ends allow the GF Signet 2450 pressure sensor to be submerged in process vessels or in-line installation with conduit connection.

GF Signet 2450 pressure sensors are gauge pressure sensors, which measure the difference in pressure between the process on one side of a diaphragm and the atmospheric pressure on the opposite side.

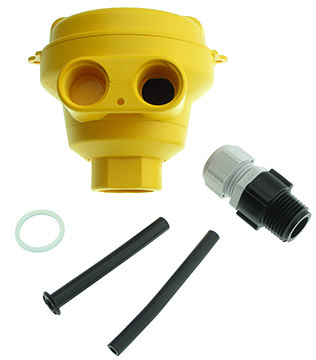

Integral adapters (sold separately) may be used to create a compact assembly with field mount version of the GF Signet 8450 Pressure Transmitter.
