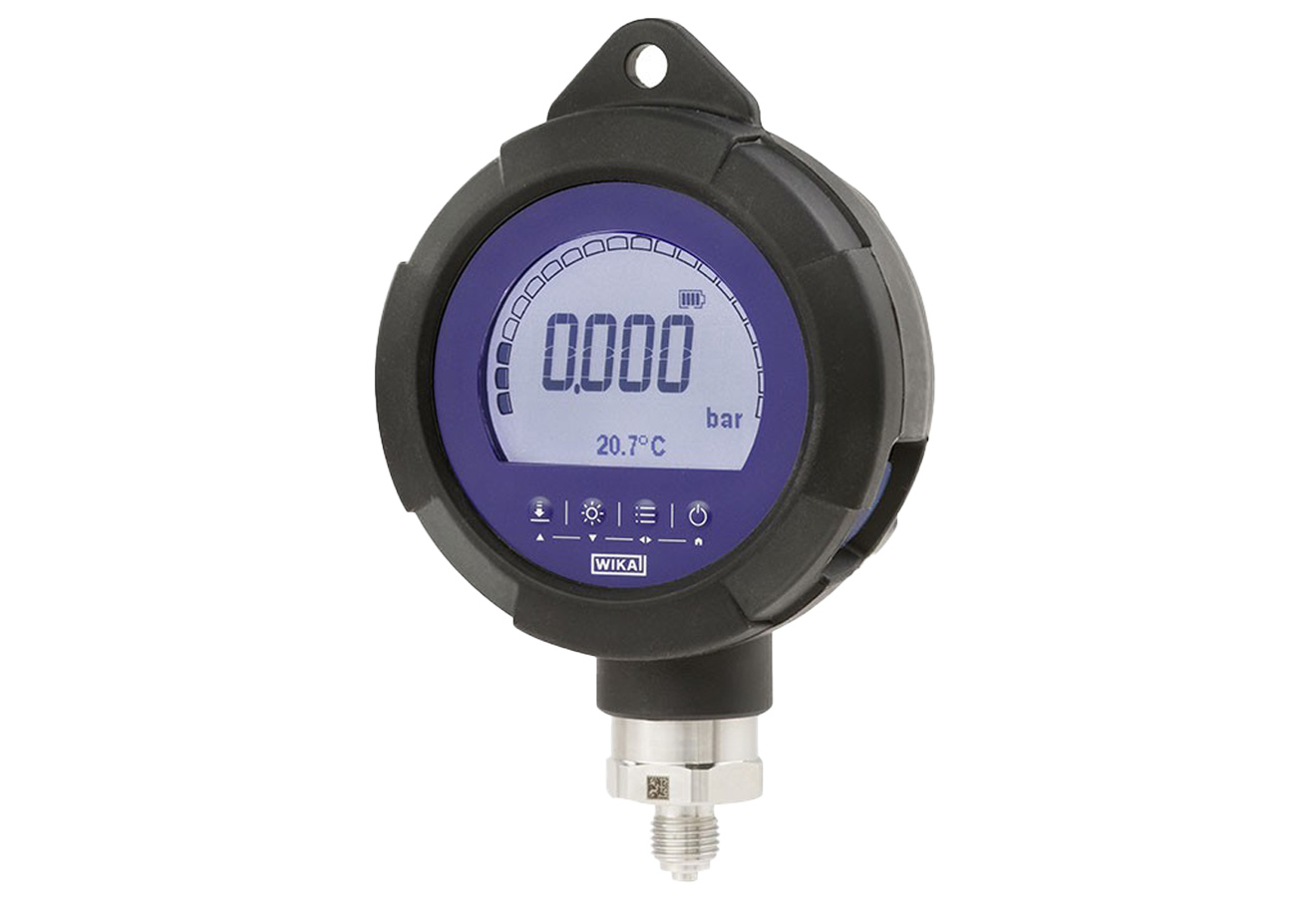

WIKA CPG1200 Digital Pressure Gauge

The WIKA CPG1200 Digital Pressure Gauge is battery-operated and very sturdily built digital pressure gauge, designed specifically for use in mobile applications. Ranges up to -1 to 1,000 bar [-14.5 to 15,000 psi] (gauge pressure) feature an accuracy down to 0.25 % FS.

The CPG1200 is available with the most common process connections. Simplified workflow thanks to the data logger with up to 1 million data points and min./max. function. The quick and simple test also minimizes the risk of production downtimes due to critical pressure values in the process - thanks to the intrinsically safe Ex version also in sensitive areas of the oil and gas industry.

The CPG1200 is equipped with a Micro-USB interface for simple and interference-resistant data transmission with optional Bluetooth functionality. To ensure that critical pressure changes are detected at an early stage during transports, the CPG1200 continuously records the values and sends an alarm if necessary. The data logger and battery operation makes it ideal for temporary monitoring. An energy-saving mode and variable measuring rates allow for operating times of up to 4,000 hours without changing the battery. The battery status display shows when a change is necessary. If stationary operation is preferred, there is a power supply via USB interface.

Applications

• Hydrostatic pressure test
• Burst tests
• Leakage measurement
• Setting switch points on pressure switches
• Analysis of process pressures
