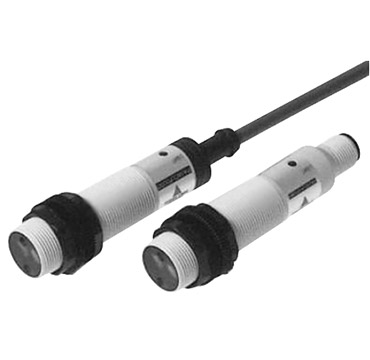

Carlo Gavazzi General Purpose Reflective Sensors
Retro and Diffuse reflective family of general purpose sensors.
Overview
Features
- Ranges: 100mm, 200mm, 400mm, 2m and 3m
- Modulated infrared light
- 10 to 40VDC or 20 to 250VAC supply voltage
- 200mA NPN or PNP; 500mA SCR output
- Make and break switching function, LED indication
- Reverse polarity, short circuit & transients protection
- High immunity to ambient light
- Cable and plug versions
Description
The PA18C series of Carlo Gavazzi general purpose reflective sensors includes inexpensive general purpose Diffuse-reflective, Retro-reflective, and Polarized Retro-reflective sensors.
Housed in industrial standard 18mm cylindrical PBTP or nickel-plated brass housings, Carlo Gavazzi general purpose reflective sensors are useful for simple applications where a basic sensor provides adequate sensing performance. Carlo Gavazzi general purpose sensors are simple to use and no adjustments are necessary (except the 400mm diffuse adjustable type). The output is a 4-wire complementary (NO and NC) output in NPN (current sinking) or PNP (current souring) or 2-wire NO or NC thyristor (SCR) output.
Documents
Spec Sheets
- Carlo Gavazzi Diffuse Reflective Sensors DC Datasheet PDF (161 KB)
- Carlo Gavazzi Retro Reflective Sensors DC Datasheet PDF (90 KB)
- Carlo Gavazzi Retro Reflective Polarized Sensors DC Datasheet PDF (86 KB)
- Carlo Gavazzi Diffuse Reflective Sensors AC Datasheet PDF (375 KB)
- Carlo Gavazzi Retro Reflective Sensors AC Datasheet PDF (95 KB)
- Carlo Gavazzi Retro Reflective Polarized Sensors AC Datasheet PDF (340 KB)
- Carlo Gavazzi Diffuse Reflective Sensors Metal-Housing Datasheet PDF (100 KB)
