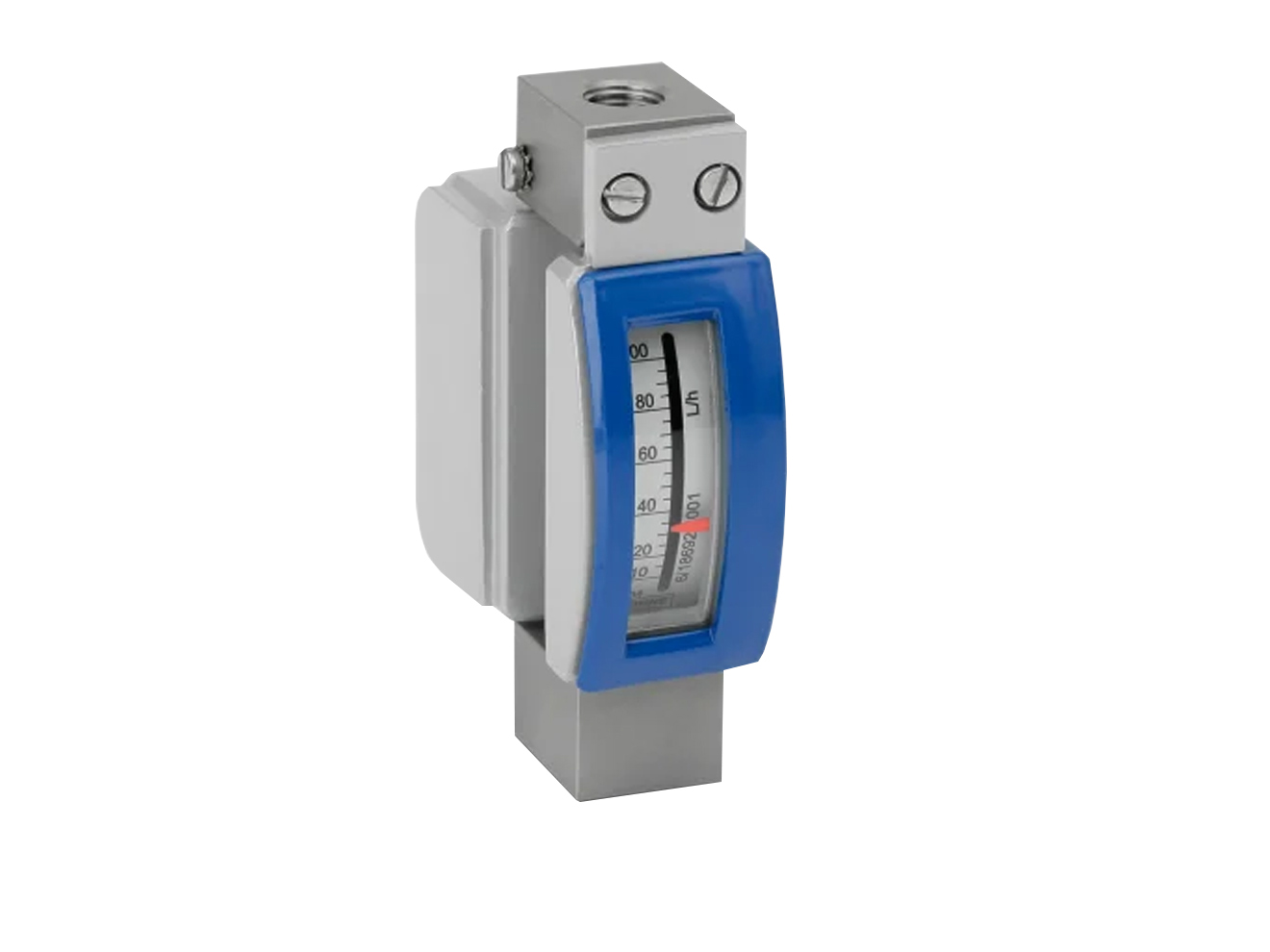

KROHNE DK34 Variable Area Flow Meters

Versatile, all-metal flow meters for liquid flow rates to 0.7 gpm and gas flow rates to 2.825 scfm.

Starting at $1,242.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Manual Product Specs

Features

  • Upper limit of measurement for liquids: 0.007 to 0.7 gpm
  • Upper limit of measurement for gases: 0.009 to 2.825 scfm
  • Accuracy: ±4.0% of measured value
  • Process temperatures from -112°F to +302°F
  • Operating pressure up to 130 bar
  • Local indication without auxiliary power
  • Rugged, all-metal construction
  • 2 limit switches
  • SIL 2 compliant acc. IEC61508
  • Approved for hazardous areas in accordance with ATEX, FM, NEPSI
  • Many different process connections
  • Optional differential pressure regulators ensure constant flow

The KROHNE DK34 variable area flow meters are economical and versatile instruments designed to measure the flow of gases and liquids. Featuring a simple design that requires no auxiliary power, the DK34 is ideal for applications such as fine metering, gas chromatography, and minimum level monitoring and control.

The KROHNE DK34 meter features vertical process connections and no valve. It is designed for low-flow applications. The flow rates for liquids is 0.007 to 0.7 gpm and the flow rate for gases is 0.009 to 2.825 scfm. Standard accuracy is ±4.0% of measured value. The meters can be directly connected to a differential pressure regulator in order to ensure constant flow in the event of fluctuating operating pressure.

The KROHNE K34 variable area flowmeter feature sturdy, all-metal design ensuring high resistance to pressure, temperature and media while standing up to extreme application and environmental conditions. The meters utilize simple float technology in which the position of the float is magnetically transmitted to an analog indicator to display the measured value. The DK34 are ATEX and FM approved for hazardous areas.
