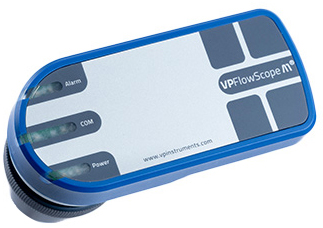

VPInstruments VPFlowScope M Flow Meter

Four-in-one sensor for flow, pressure, temperature on compressed air and other clean dry gases. Start Kit available.

Starting at $2,335.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs

Features

  • Flow range: 1.64 to 490sfps
  • Pip size(s): 2 to 16in
  • Pressure range: 150psi max
  • Pressure, temperature and totalized flow measurement
  • Bi-directional flow (VPSensorCartridge dependent)
  • Ethernet (Modbus/ TCP)
  • RS485 (Modbus RTU)
  • 4-20mA linearized, pulse mode or alarm output
  • VPStudio software (free download)
  • Accessories included:
    • Solo M Flow Meter:
      • Compression fitting
      • Safety cable
      • Mini-USB cable (display model only)
    • Process Kit:
      • VPSensorCartridge
      • Compression fitting
      • Mini USB, power & safety cables
    • Auditor Start Kit:
      • VPSensorCartridge
      • Compression fitting
      • Mini USB, Ethernet & safety cables
      • Power supply
      • M Explorer Case

The VPInstruments VPFlowScope M Flow Meter is a four-in-one bidirectional flow meter for compressed air, nitrogen, oxygen, helium, argon, and other industrial gases. Featuring 4-20mA and RS485 (Modbus RTU) outputs, and a built-in Ethernet (Modbus/TCP) interface, the VPFlowScope M is easy to connect directly to any network. It can be installed under pressure and simultaneously measure (bi-directional) thermal mass flow, pressure, temperature, and total flow.

Unlike traditional flow meters, the VPFlowScope M does not require traditional recalibration, where you have to ship the unit back. Instead, it consists of a transmitter and the VPSensorCartridge1, reducing recalibration to a simple exchange.

1. The VPSensorCartridge is required for new installations and is sold separately from standalone probe configurations (see Accessories tab). Cartridge is included with Process and Auditor Start Kits.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

VPInstruments VPFlowScope M Sensor Cartridge
VPInstruments VPFlowScope M Sensor Cartridge

Uni- or bi-directional sensor cartridge for flow, pressure, and temperature measurement. For use with VPFlowScope M Flow Meters and Start Kits.

Starting at $770.00

Accessories

Please consider these optional accessories.

VPInstruments Display and Sensor Power Supply
VPInstruments Display and Sensor Power Supply

110-240VAC to 24VDC power supply for flow meters with display.

$90.00
VPInstruments VPFlowScope Sensor Cable
VPInstruments VPFlowScope Sensor Cable

5 pin M12 connector on one end, open wires for 0V, 24V, RS485 A, RS485 B and Analog output on the other end.

Starting at $64.00
VPInstruments VPFlowScope M Ethernet Cable
VPInstruments VPFlowScope M Ethernet Cable

4 pin M12 connector on one end, RJ45 connector on the other end.

$103.00
VPInstruments VPFlowScope Mini USB Cable
VPInstruments VPFlowScope Mini USB Cable

For utilization of VPStudio Software.

$9.00
VPInstruments VPFlowScope M Explorer Case
VPInstruments VPFlowScope M Explorer Case

Rugged transport case with pre-cut foam to fit VPFlowScope M Flow Meter and accessories.

$547.00
VPInstruments VPFlowScope IP65 Power Supply Module
VPInstruments VPFlowScope IP65 Power Supply Module

Power supply module in IP65 enclosure (230-110VAC to 24VDC) for permanent installation. Can power up to 2 VPFlowScopes.

$412.00
VPInstruments Gas Correction Factor Factory Service
VPInstruments Gas Correction Factor Factory Service

Factory programmed gas correction factor for +/-5% accuracy for common industrial gases.

Starting at $106.00
