Dakota NDT ZX1 Fixed Velocity Thickness Gauge
Entry level unit that is easy to calibrate on keypad by scrolling to a known material velocity.
Overview
Features
- Pulse-Echo (P-E) measurement range: 0.025 to 36in (0.63 to 914.4mm)
- Measurement resolution: 0.001in (0.01mm)
- 120MHz FPGA timing
- 150 volt square wave pulser
- Velocity range: 0.0120 to 0.7300in/μs (305 to 18,542m/s)
- Pulse repetition frequency: 200Hz
- Display update rate: 10Hz
- 1 programmable velocity, pre-calibrated for steel

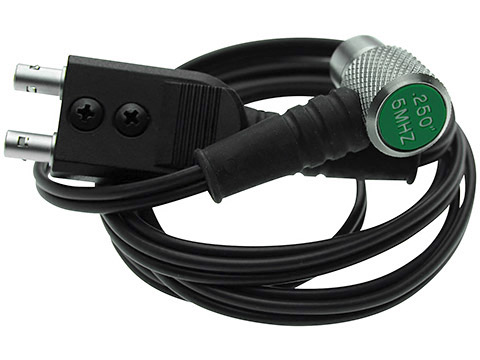

- Dual-element transducer (1-10MHz)
- Automatic V-path / dual path error correction
- Adjustable material velocity
- Multi-function, 7-segment, 4.5-digit liquid crystal display
- Factory calibration traceable to NIST & MIL-STD-45662A
- 5-year limited warranty
What's in the Box
- Selectable transducer
- Couplant
- Manual
- Plastic carrying case
- Certificate of Calibration
- AA batteries
Description
The Dakota NDT ZX1 fixed velocity thickness gauge is a basic dual element thickness gauge with the ability to locate blind surface pitting and internal defects and flaws in materials. The ZX1 is capable of measuring the thickness of various materials with accuracy as high as ±0.001 inches (±0.01 millimeters). It is pre-calibrated to measure steel, allowing the inspector to simply take the gauge out of the box and measure. Calibration is done by simply scrolling to a known material velocity.
The ZX1 was designed and built to withstand the roughest industry conditions, and it is backed by a 5-year limited warranty. Custom transducers are available for special applications.
Dakota NDT ZX1 Fixed Velocity Thickness Gauge Applications
- Corrosion and pitting
- Tube and pipe
- Tanks
- Boilers
- Glass
