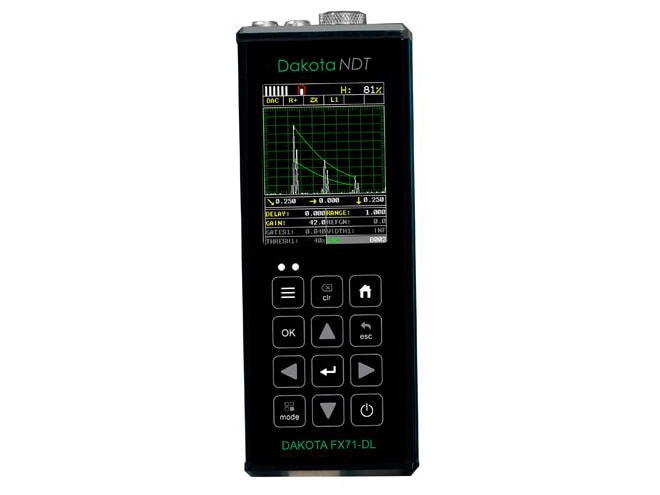

Dakota NDT FX70 Series Flaw Detector and Thickness Gauge
Handheld ultrasonic thickness gauge and flaw detector in one compact unit.
Overview
Features
- Display views:
- Flaw Detector: Full wave, +/- Rectified, or RF
- Thickness Gauge: Digits, +/- Rectified, RF, or B-Scan
- Resolution (selectable): +/- 0.001in (0.01mm) or +/- 0.0001 in (0.001mm)
- Timing: Precision TCXO timing with single shot, 100MHz, 8-bit ultra low power digitizer
- Thickness gauge measurement modes:
- Pulse-Echo (P-E): pit and flaw, 0.025 to 96in (0.63mm to 244cm)
- Pulse-Echo Coating (PECT): material, coating, pit, and flaw, 0.025 to 96in (0.63mm to 244cm)
- Pulse-Echo Temp Comp (PETP): pit and flaw, auto temperature compensation, 0.025 to 96in (0.63mm to 244cm)
- Echo-Echo (E-E): thru paint and coatings, 0.05 to 4in (1.27 to 102mm)
- Echo-Echo Verify (E-EV): thru paint and coatings, 0.05 to 1in (1.27 to 25.4mm)
- Coating Only (CT): coating thickness, 0.0005 to 0.1in (0.0127 to 2.54mm)
- Flaw detector measurement mode:
- Pulse-Echo (P-E): 0.025in to 100ft (0.63mm to 3048cm)
- Frequency Bands:
- FX70-DL: Broadband 1.8 - 19MHz (-3dB)
- FX71-DL: Broadband 1.8 - 19MHz (-3dB); three narrow bands at 2MHz, 5MHz, 10MHz
- One- and two-point calibration option for material and coating, or selection of basic material types
- Auto probe zero, recognition, and temperature compensation
- Up to 50 readings per second in high speed scan mode
- 64 user-definable setups transferrable to and from a PC archive
- 4Gb internal memory
- Direct USB-C 1.1 PC connectivity
- 1/4 VGA AMOLED color display
- Factory calibration traceable to NIST & MIL-STD-45662A
- 2-year limited warranty
What's in the Box
- Selectable transducer
- Couplant
- Manual
- Plastic carrying case
- Certificate of Calibration
- AA Batteries
- PC software and data transfer cable
Description
The Dakota NDT FX70 Series flaw detector and thickness gauge combines state-of-the-art flaw detection with advanced material thickness capabilities. When the FX70 gauge is set to thickness gauge, it measures coatings and material thickness simultaneously. When set to flaw detector, the gauge detects the size and position of flaws and differentiates between flaw types in various materials and welded joints. The user is able to set hi/lo limits for pass/fail indication with audible warnings and built-in differential mode for quality control inspections.
The FX70 gauge has a choice of display modes including A- and B-Scan displays and flaw detection modes such as TRIG, DAC, TCG, Flank, and Peak. The time corrected gain (TCG) feature automatically compensates for sound attenuation through a material, further increasing the performance of the gauge.
The FX70 stores up to 4GB worth of readings with A/B-scan images in alpha numeric batches with full data logging and firmware updates via USB data output to DakMaster data management software.
