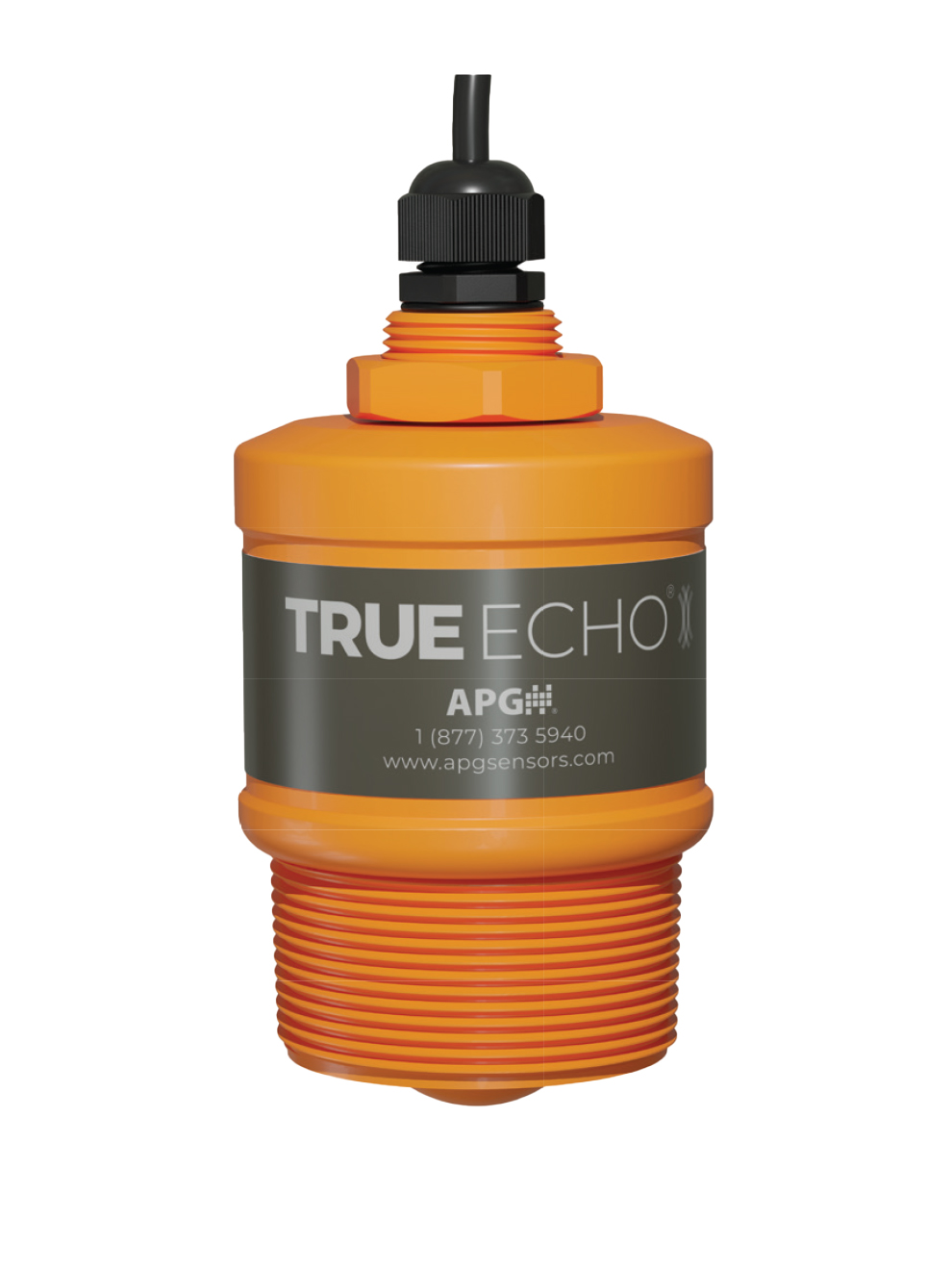

APG True Echo CR-L Radar Level Sensor
Liquid level measurement in temperatures from -40 to 70°C. Pressure rated from -14.5 to 43.51psi. Chemically resistant construction, with ±3mm accuracy and bluetooth capability.
Overview
Features
- Operating temperature range: -40 to 158°F (-40 to 70°C)
- Pressure range: -14.5 to 43.51psi
- Measuring range: 7.87in to 49.2ft max (0.2 to 15m)
- Accuracy: ±3mm, 8° beam angle
- Output(s): 4-20mA or RS485
- Bluetooth capability
- Housing material: PVDF or PE
- Process fitting: 2in NPT
- Connector: pigtail with 16ft cable (5m)
- Reverse voltage and spike protection
- IP67, FCC, ISED, and CE certifications
Description
The APG True Echo CR-L Radar Level Sensor is built to monitor liquid levels in various industries, with a chemical-resistant design and advanced radar technology. The high accuracy of the sensor's measurements (±3mm, 8° beam angle) is maintained even in harsh application environments, including those with varying temperatures and atmospheric particles/debris such as smoke, dust, or foam. The CR-L can withstand pressures from -14.5 to 43.51psi. A measuring range of 7.87in to 49.2ft (0.2 to 15m) provides thorough coverage for precise positioning and high-resolution detection, even for small targets.
A 4-20mA or RS485 output are integrated into the sensor, allowing for flexible integration into various control systems. On-site maintenance is streamlined through the CR-L's Bluetooth compatibility and use of the TRUE ECHO app. Installation of the unit is straightforward, with a compact design and 2in NPT process fitting.
