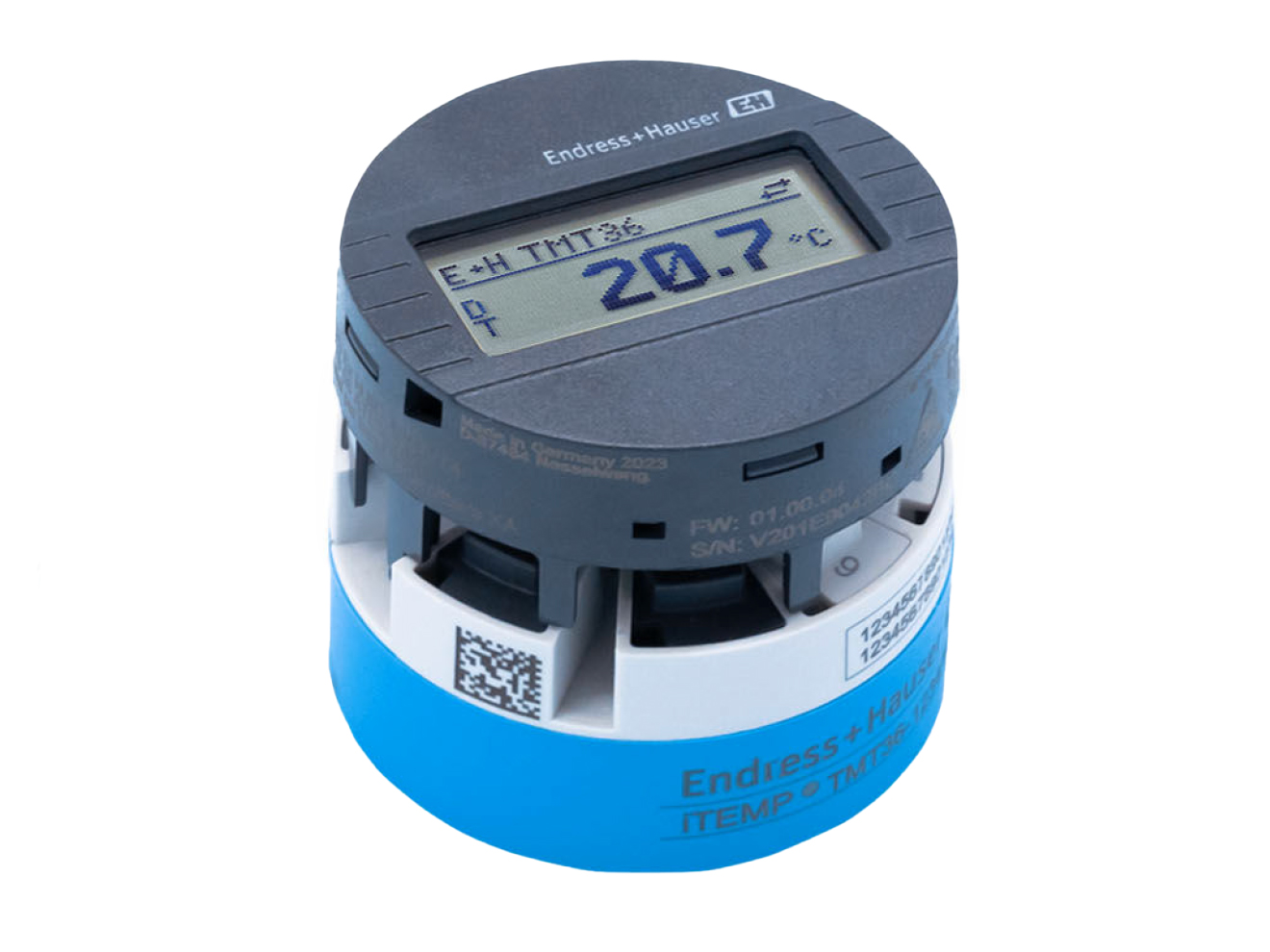

E+H iTEMP TMT36 Head Mount Temperature Transmitter
Single-channel IO-Link transmitter with form B connection head. Compatible with 2-, 3-, and 4-wire RTD sensors. Configurable with E+H TID10 Transmitter Display Head.
Overview
Features
- Input: 1 x RTD (2-,3-,4-wire)
- Output: IO-Link
- 1 x PNP, NPN or push-pull switch output (configurable)
- Accuracy: Pt100, -50 to 200°C ( -58 to 392°F) <= 0.15K
- Ambient temperature range: –40 to 85°C (–40 to 185°F)
- Sensor-transmitter matching via Callendar-van Dusen equation
- Auxiliary power supply: 18 to 30V DC
- Installation: Terminal head form B or on DIN rail with clip
- Optional E+H TID10 Transmitter Display Head
- Screw/push-in terminals
- NAMUR NE107 diagnostics
- IP 20
- Vibration resistance: IEC 60068-2-6/27
- CSA General Purpose certification
Description
The E+H iTEMP TMT36 Head Mount Temperature Transmitter records and converts RTD sensor input signals in industrial level temperature measurement applications. This single-channel IO-Link unit utilizes the Callendar-van Dusen equation in its sensor-transmitter matching, increasing the accuracy of measured values when transmitted between the sensor and device. The TMT36 also integrates all standard diagnostic functions, such as overrange/underrange detection, low voltage detection, internal device errors, simulation and overload at switch output alarms.
The form B connection head allows installation on all modular E+H thermometers, bringing digital transmission services to a wide range of industries. Push-in terminals are available for tool-free installation and easy access during maintenance. The unit can be configured with an optional transmitter display head (TID10).
