Name: Meunier Technologies DICE Wall Mount Panel
Price: 507.0 USD
Availability: BackOrder

Meunier Technologies DICE Wall Mount Panel

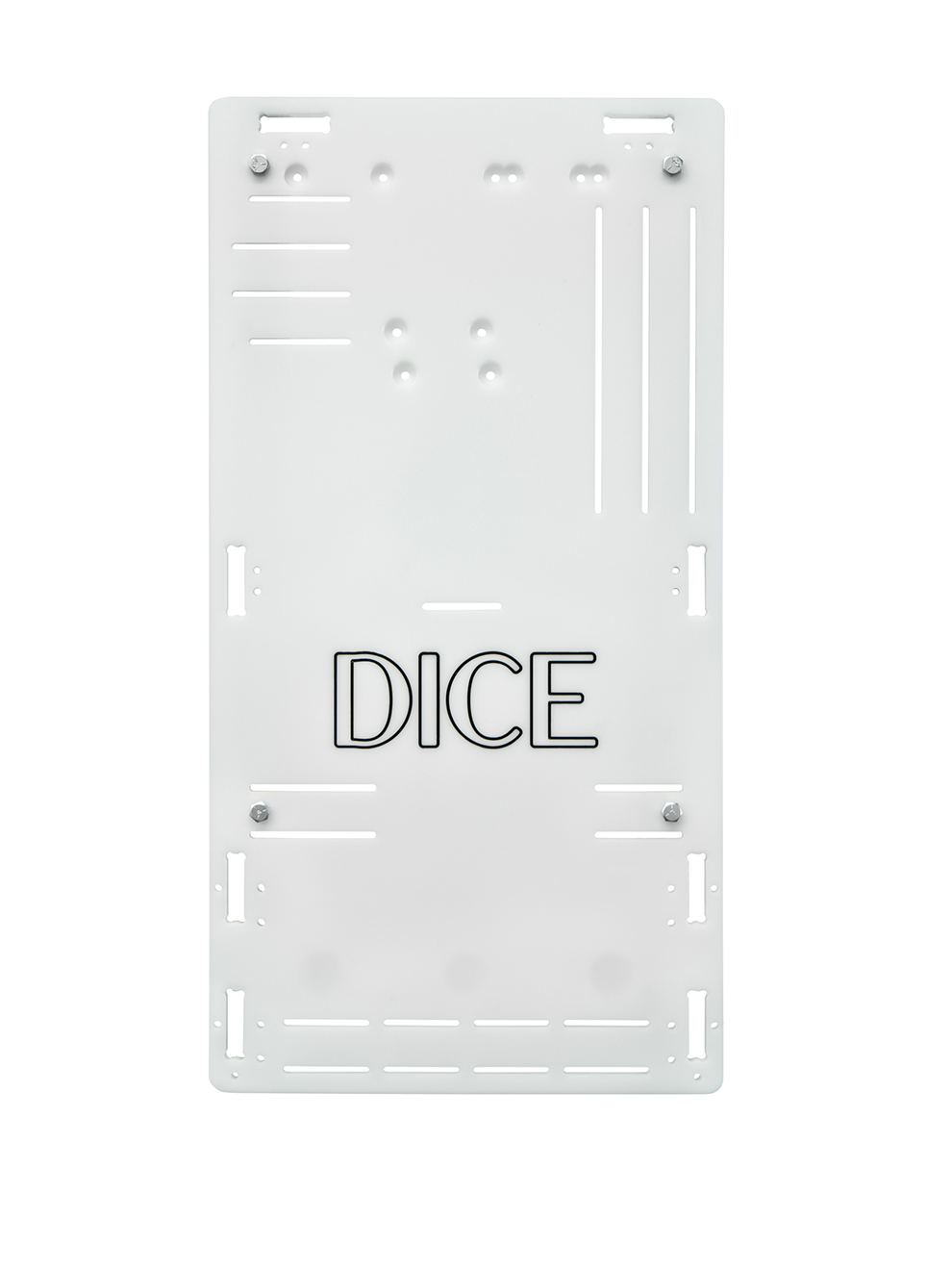

Meunier Technologies DICE Wall Mount Panel

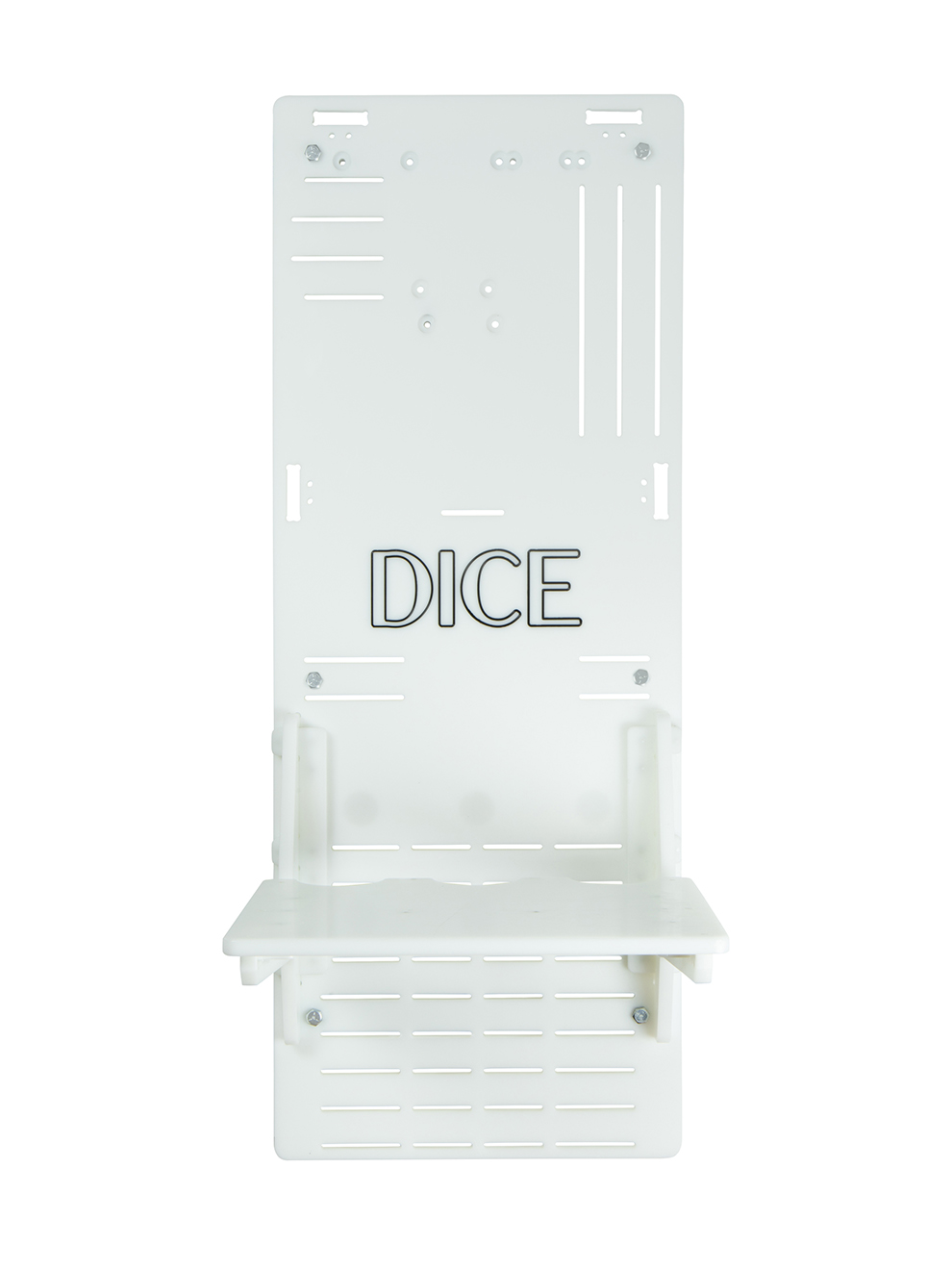

Meunier Technologies DICE Wall Mount Panel - with shelf

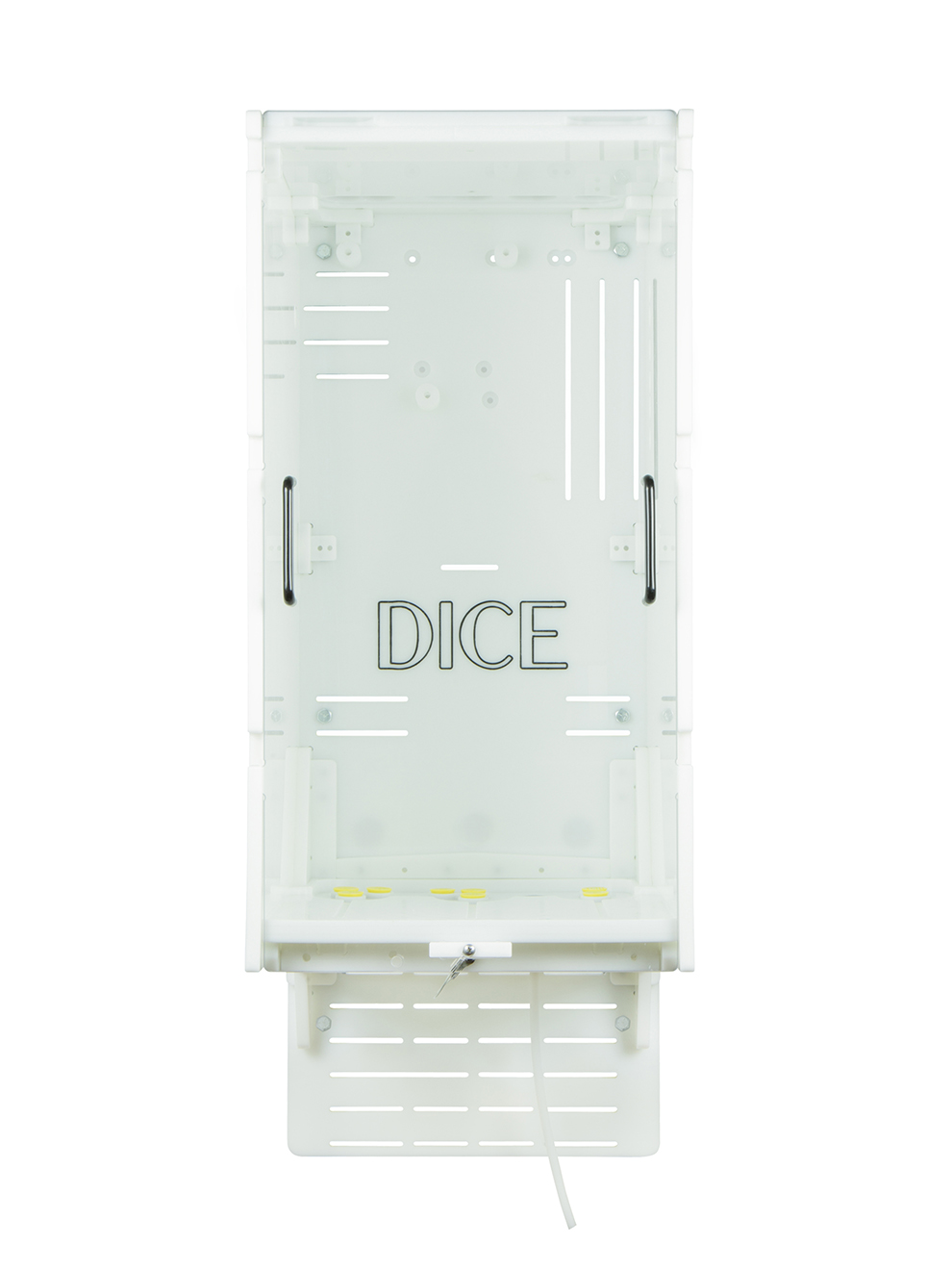

Meunier Technologies DICE Wall Mount Panel - with enclosed shelf
How to Install DICE DS/DM Modules on DICE Wall Mount Panel

Starting at $507.00

View Company Reviews

Manufactured

By Meunier Technologies

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Features

Housing kit for DICE Dosing Modules DS/DM 1/2in sizes
Material:
- Panel: HDPE
- Optional shelf/enclosure: HDPE
- Fasteners: stainless steel
Dimensions:
- Solo wall panel: 15in W x 29in H
- Wall panel with shelf: 15in W x 38.5in H x 15.5in D
- Wall panel with enclosure: 15in W x 38.5in H x 17.1in D
Color: white
Panel with enclosure configuration includes:
- 3/8in OD tubing
- 1/2in OD tubing
- 1/2in Sch80 PVC rigid piping
- 1/2in MNPT drain connector
- LMI Ferrule Fit kit (1 included)
Packaged in a 29in x 17in x 3in cardboard box
- Parts of this kit are shipped loose, for assembly at facility or on site

This product is an accessory for the following products:

Meunier Technologies DICE Dosing All-In-One System

Chemical dosing kit including DICE Dosing Module with suction lift/flooded suction, Wall Mount Panel with optional shelf and enclosure. Available with Grundfos pumps.

Starting at $4,929.59

Meunier Technologies DICE Dosing Module

Compact, machined block integrating all essential components for a high accuracy dosing system. Suction lift and flooded suction configurations.

Starting at $3,240.00

The Meunier Technologies DICE Wall Mount Panel is a user-friendly system that allows for quick assembly without specialized tools, easily integrating essential components like DICE DS and DM modules and pumps. Its compact design and flat-pack shipping make it an efficient and cost-effective choice for various chemical dosing setups.
