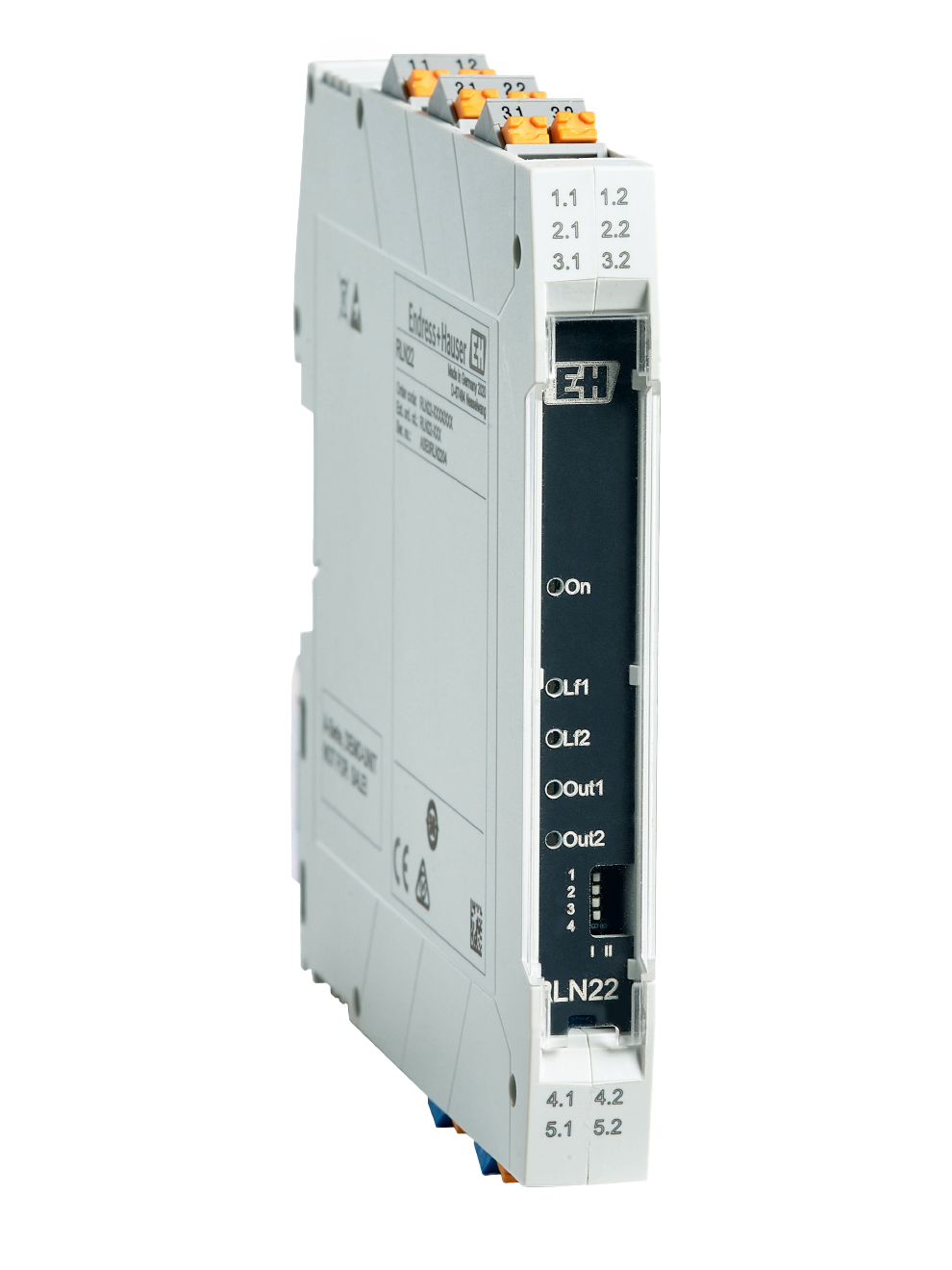

E+H RLN22 NAMUR Isolating Amplifier

24V DC compact barrier and amplifier for use with proximity sensors and point level switches. Second galvanically isolated channel optional, with Zone 2 and SIL 2 approvals available.

Starting at $126.61

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs

Features

  • Contact design:
    • Single channel: 1 changeover
    • Two channel: no contact per channel
  • NAMUR Input switch points:
    • blocking: < 1.2mA
    • conducting: > 2.1mA
  • Output: relay contact
  • DIP switch
  • Ambient temperature range: -40 to 60°C (–40 to 140°F)
  • Mounting style: for use with 35mm DIN rails in accordance with IEC 60715(TH35)
  • Loop supply voltage: 8V DC
  • Power supply voltage: 24V DC
  • Screw/push-in spring terminals
  • SIL 2
  • Certifications:
    • ATEX IECEx II(1)G [Ex ia Ga] IIC, II(1) D [Ex ia Da] IIIC, II3G Ex ec nC IIC Gc, DNV

The E+H RLN22 NAMUR Isolating Amplifier provides transmission and galvanic 3-way isolation of binary switch signals. A fully isolated second channel is available, with NAMUR standard inputs for proximity sensors or point level switches (such as Liquiphant FTL51B). Direction of action is controlled via the inbuilt DIP switch, streamlining operation of the unit. The DC interface allows for monitoring for circuit faults or mechanical switching contacts. If a fault is detected the relay automatically de-energizes to return the output to a non-conducting state for maximum process safety. Optional certifications include approvals for Zone 2 hazardous areas, and safety instrumented systems up to SIL 2. The RLN22 can be installed in vertical and horizontal orientations, with a compact, 12.5mm polycarbonate housing greatly reducing space requirements. Additional options include a secondary power supply and group error message via DIN rail bust connector.
