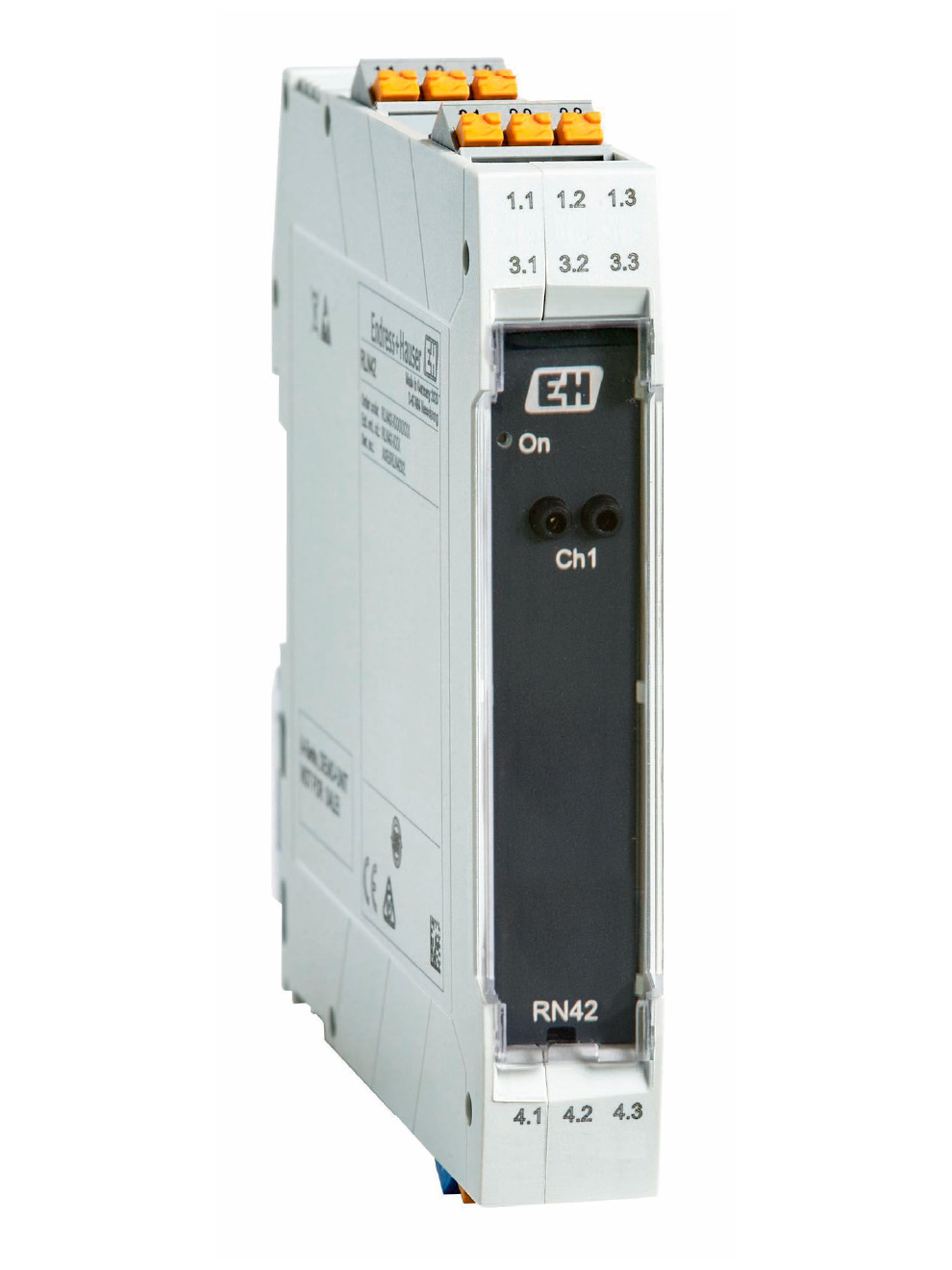

E+H RN42 Active Barrier
Single-channel unit with 24 to 230V AC/DC power supply, bidirectional HART transmission capability, hazardous area and SIL certifications available.
Overview
Features
- Single channel
- Diameter: 17.5mm
- Ambient temperature range: -40 to 60°C (–40 to 140°F)
- Storage temperature range: –40 to 80°C (–40 to 176°F)
- Response time: ≤ 1 ms
- Transmission error: < 0.1 % / of full scale value (< 20 µA)
- Input signal: 0/4 to 20mA / HART (feeding/not feeding)
- Output signal: 0/4 to 20mA / HART (active/passive)
- Wide range power supply voltage: 24 to 230V AC/DC
- Transmitter supply voltage:
- 17.5V ±1 at 20mA
- Open circuit voltage, active: 24.5V ±5%
- Mounting style: installs on 35mm DIN rails in accordance with IEC 60715(TH35)
- Polycarbonate housing
- Push-in/screw terminals
- SIL2/SC3
- NAMUR NE 43
- Additional certification(s):
- ATEX, IECEx, Ex (JPN, KC, UK), CSA C/US AIS, INMETRO, NEPSI, EAC, UL C/US, DNV
Description
The E+H RN42 Active Barrier is a loop-powered unit designed for fast and accurate transmission and galvanic isolation of 0/4 to 20mA/HART signals, with a wide range supply voltage of 24 to 230V AC/DC. Direct connection of a 2 or 4-wire transmitter is possible via an active/passive current input, with an output that can be configured to operate actively or passively. Pluggable screw or optional push-in terminals are available for integration of the barrier with a PLC/controller. Bidirectional transmission to/from the RN42 is possible via the HART-compatible design. Integration with HART devices occurs through easy-access sockets on the front of the unit. The compact, polycarbonate housing with top or the bottom power-supply terminals allows for user-friendly, adaptable installation. The RN42 can be configured for hazardous areas up to Ex Zone 2, as well as safety-oriented applications up to SIL 2 (SC3).
