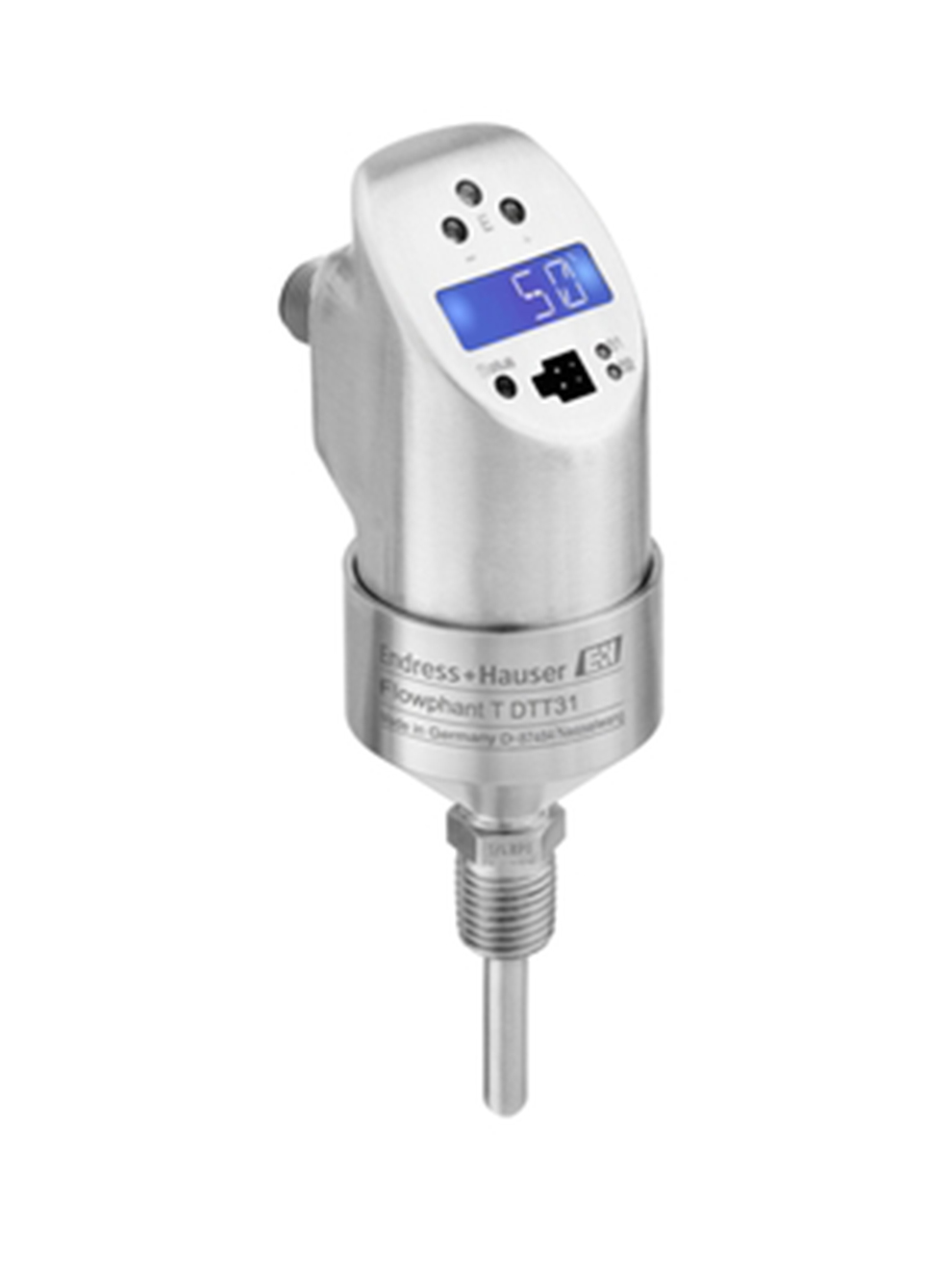

E+H Flowphant T DTT31 Flow Switch
Designed for minimal pressure loss, with LCD display and rotational top house section. NPT and G male thread process connections available.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Measuring principle: thermal
- Nominal diameter: DN 25 to 1000 (1 to 40in)
- Max measurement error: 2 to 10%
- Max process pressure: 100bar (1740psi)
- Measuring range: 0.03 to 3 m/s (0.1 to 9.84 ft/s)
- Medium temperature range:
- -20 to 85°C (-4 to 185°F)
- CIP-able to 130°C / 266°F
- Display: LED, LCD
- Output(s):
- 1 x PNP switchable output
- 1 x 4 to 20mA analog output
- IP66
Description
The E+H Flowphant T DTT31 Flow Switch measures relative mass flow rates of liquid mediums with virtually no pressure loss. The DTT31 can be configured with a second switch output or 4 to 20mA analog output for temperature monitoring or flow rates output as a percentage. NPT and G male threaded stainless steel connections offer adaptable installation for numerous applications. Function checks and processing information happen onsite thanks to the digital LCD display. A 310 degree rotational top house section makes for ready display access in various installation positions.
The E+H Flowphant T DTT31 Flow Switch:
- Cooling water circuit monitoring
- Leak monitoring
- Lubrication circuit monitoring
- Filter monitoring
Documents
In Stock
Manufacturer Stock
This stock is typically available to ship in 2 - 4 working days
Part Number | Price | Available | |
---|---|---|---|
DTT31-A1C111DA2AAB |
$585.57 | 2 in stock |
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
Part Number | Price | Available | |
---|---|---|---|
DTT31-A1C111DE2AAB 30mm | Call for information | 29 | Call to order |
DTT31-A1C111DE2BAB 50mm | Call for information | 23 | Call to order |
DTT31-A3A111DE2BAB 50mm | Call for information | 2 | Call to order |
DTT31-A1A111DAX1AB 45mm | Call for information | 1 | Call to order |
DTT31-A1C111DEX1AB 152mm | Call for information | 15 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
