Draeger X-Dock 5300/6300/6600

Modular solution for bump/functional testing, calibration and documentation storage.

Starting at $3,419.00

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Touchscreen operated master control station
  • Up to three configurable test routines
  • Automatic permeability tests
  • Automatic tests of all alarm elements (acoustic, visual and vibration alarms)
  • Optional charging function for X-am
  • Easy to replace seal cartridge
  • 12V operation available
  • Can be expanded to max 10 modules

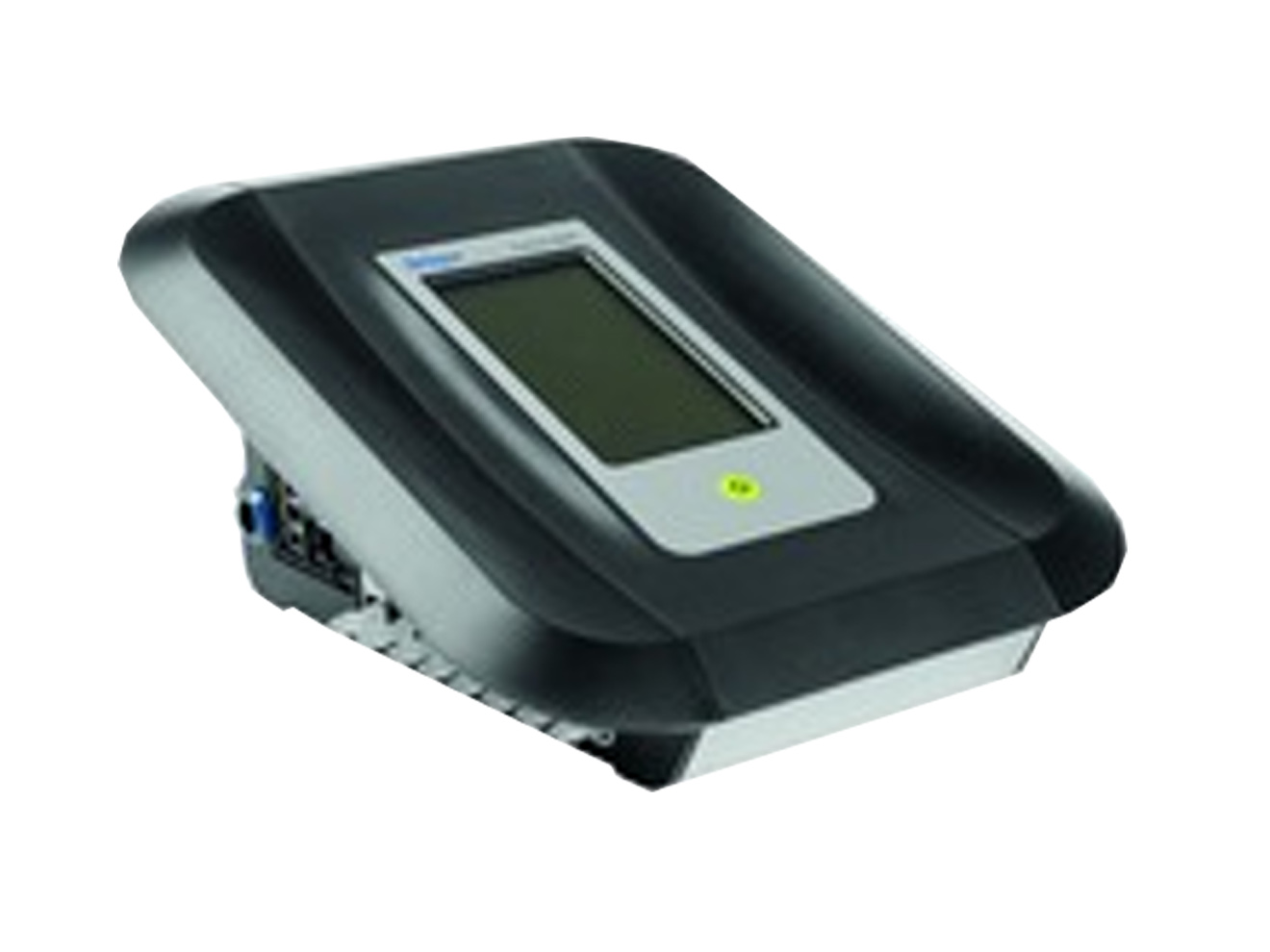

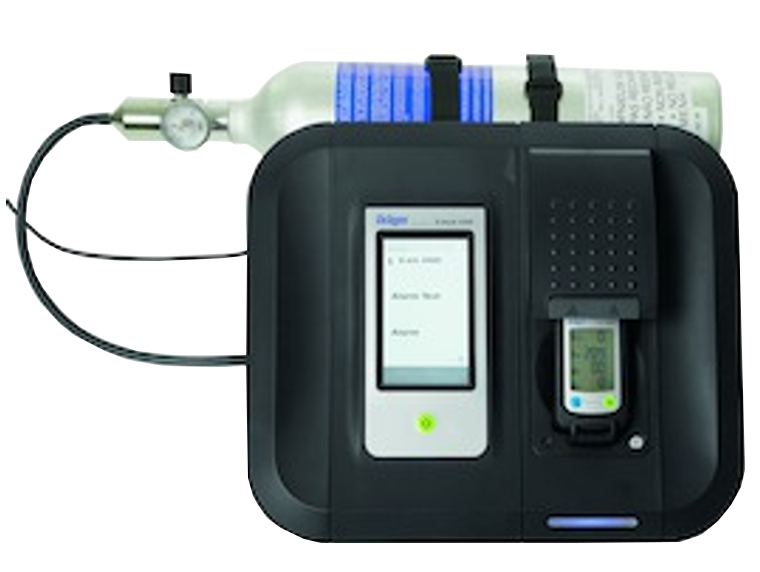

The Draeger X-Dock 5300/6300/6600 is a modular dock that includes a touch screen operated master controller station with three pre-configured test routines. When a Draeger gas detection instrument is placed in the X-dock it detects all sensor combinations and automatically tests and adjusts using the connected calibration gases.
All generated data is documented in the database. The report wizard can be used to create customized reports and calibration certificates can be printed at the stations via compatible USB printers; providing documentation such as instrument operational status, name of tester, and location of tests.
The Gas Detection Connect software produces a detailed evaluation of the data in the calibration system and gas detection instruments and presents the information in various graphics and statistical models—providing you with a comprehensive overview of all results. Multiple X-dock systems can be connected in a network giving all users access to data in a central database.

For additional configuration options contact Instrumart
