Fluke PVA-1500HE2 PV Analyzer, I-V Curve Tracer

Measures and displays I-V curves up to 1500V and 30A.

Features

  • 20 to 1500V DC voltage range
  • ±(0.5% ±0.25V) voltage accuracy
  • ±(0.5% ±0.04A) current accuracy
  • 400 sweeps/hr
  • <9 seconds sweep-to-sweep delay (@VOC ≤ 1350V)
  • 100 or 500 (selectable) I-V trace points
  • 32 to 113°F operating temperature range
  • 2 mA current resolution

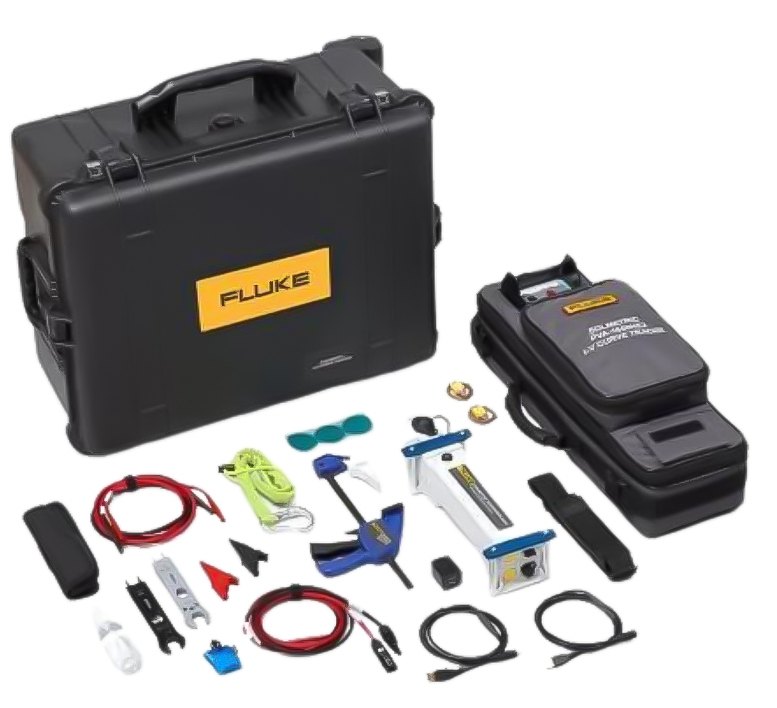

What's in the Box

  • PVA-1500 V unit
  • SolSensor and clamp
  • Alligator test leads
  • MC4 disconnect tool
  • Chargers
  • 2x thermocouples and adhesive disks
  • Sensor cleaning supplies
  • Transit case
  • Available by free download: PVA Application and Data Analysis Tool

The Fluke PVA-1500 Series PV Analyzer, I-V Curve Tracer is designed to measure PV system performance. With this high precision testing equipment, users can reliably assess the health and performance of solar modules and arrays, making informed decisions to enhance their output and longevity.

The PVA-1500 kit offers an array of advanced features, including high throughput I-V curve tracing, providing quick and detailed performance data. Its intuitive user interface enables easy navigation and real-time analysis, allowing for immediate identification of potential issues.
