Pyxis ST-774 PortaPanel Ultra-Low Luminescent Dissolved Oxygen Analyzer
Overview
Features
- 0.0-2,000µg/L (ppb) output range
- o.1µg/L (ppb) lower level detection
- 0.1µg/L (ppb) resolution
- ±0.3µg/L (ppb) or ±1% accuracy, whichever is greater
- 32-122 °F operational temperature
- 4-20mA analog/RS-485 Modbus digital signal output
- 50-500mL/min suggested flow range
- 316L stainless steel
- 145psi (10Bar) working pressure
What's in the Box
- MA-1.5CR – 8Pin Female Adapter/Flying Lead – 1.5m
- Bulkhead Cable with 8Pin Male Adapter – 1.5m
This product is an accessory for the following products:
Description

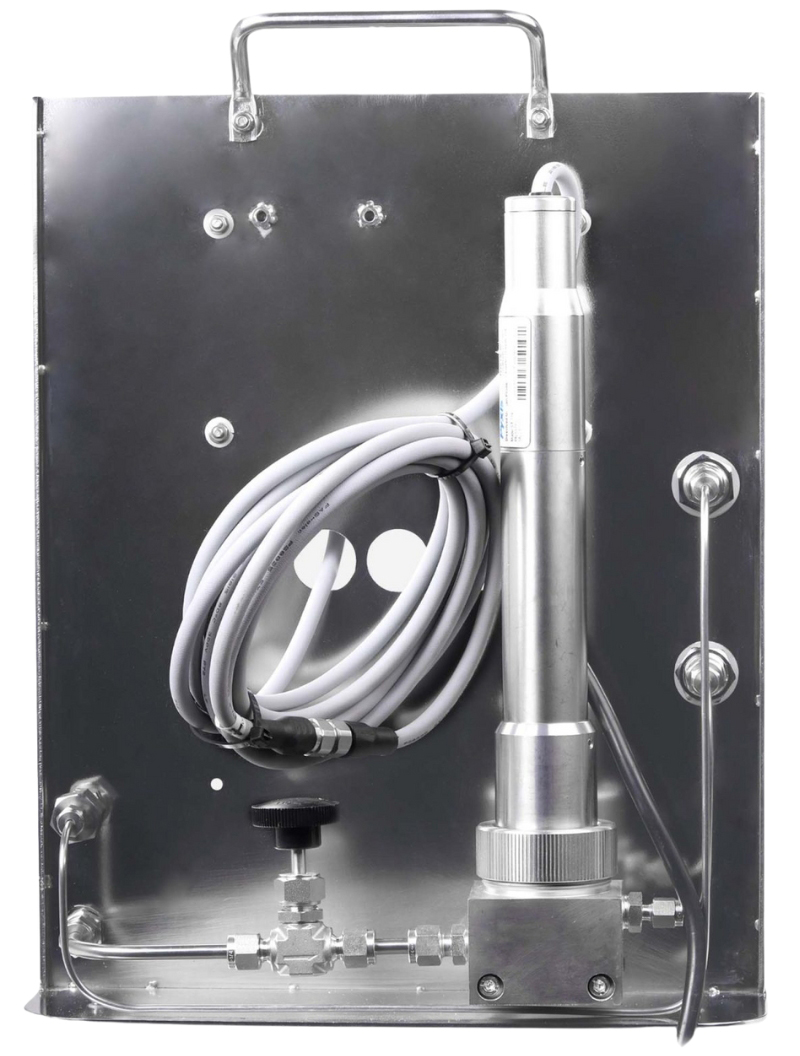

The Pyxis ST-774 PortaPanel Ultra-Low Luminescent Dissolved Oxygen Analyzer is a prefabricated panel suited use with ST-774 Ultra Low Dissolved Oxygen Sensor with local display and data acquisition in a portable fashion for oxygen measurement (ie. de-aerator performance studies). The PortaPanel is pre-mounted on an easy-carry, self-standing 316L stainless-steel panel. It comes with the ST-774 sensor, flow-cell and appropriate water sample/calibration gas flow hardware.
The panel also comes equipped with an integrated UC-50 Display/Data Logging Terminal for connection to the ST-774 via RS-485 Modbus offering live data display, calibration interface and data logging of the sensor. The UC-50 offers a contact relay output and has RS-485 Modbus and (1) 4-20mA outputs for passing the sensor value onto another device. The UC-50 also offers Bluetooth 5.0 capability for use with the uPyxis mobile or desktop apps for wireless calibration and diagnostics of the Pyxis sensor connected.
