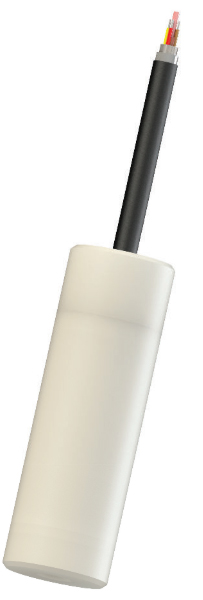

APG PT-503 Series Submersible Pressure Transmitter
Submersible up to 69 feet.
Overview
Features
- 0 to 30 PSIG
- 4-20mA, 0.5 – 4.5 VDC (ratiometric) analog output
- 2X FSO over pressure
- 3X FSO burst pressure
- ±0.5% of Full Scale (BFSL) accuracy
- 4-20 mA: 9-30 VDC
- 0.5 – 4.5 VDC: 4.5 – 5.5 VDC
Description
The APG PT-503 Series Submersible Pressure Transmitter For Harsh Chemical Environments brings precision level measurement to harsh chemical environments. Engineered with advanced materials, the PT-503 can be used in many places where stainless steel and PVC can’t go. Features user-friendly analog output options and the ability to submerge it up to 69 feet (21 meters) underwater (30 psig). Withstands most caustic or corrosive chemicals.
