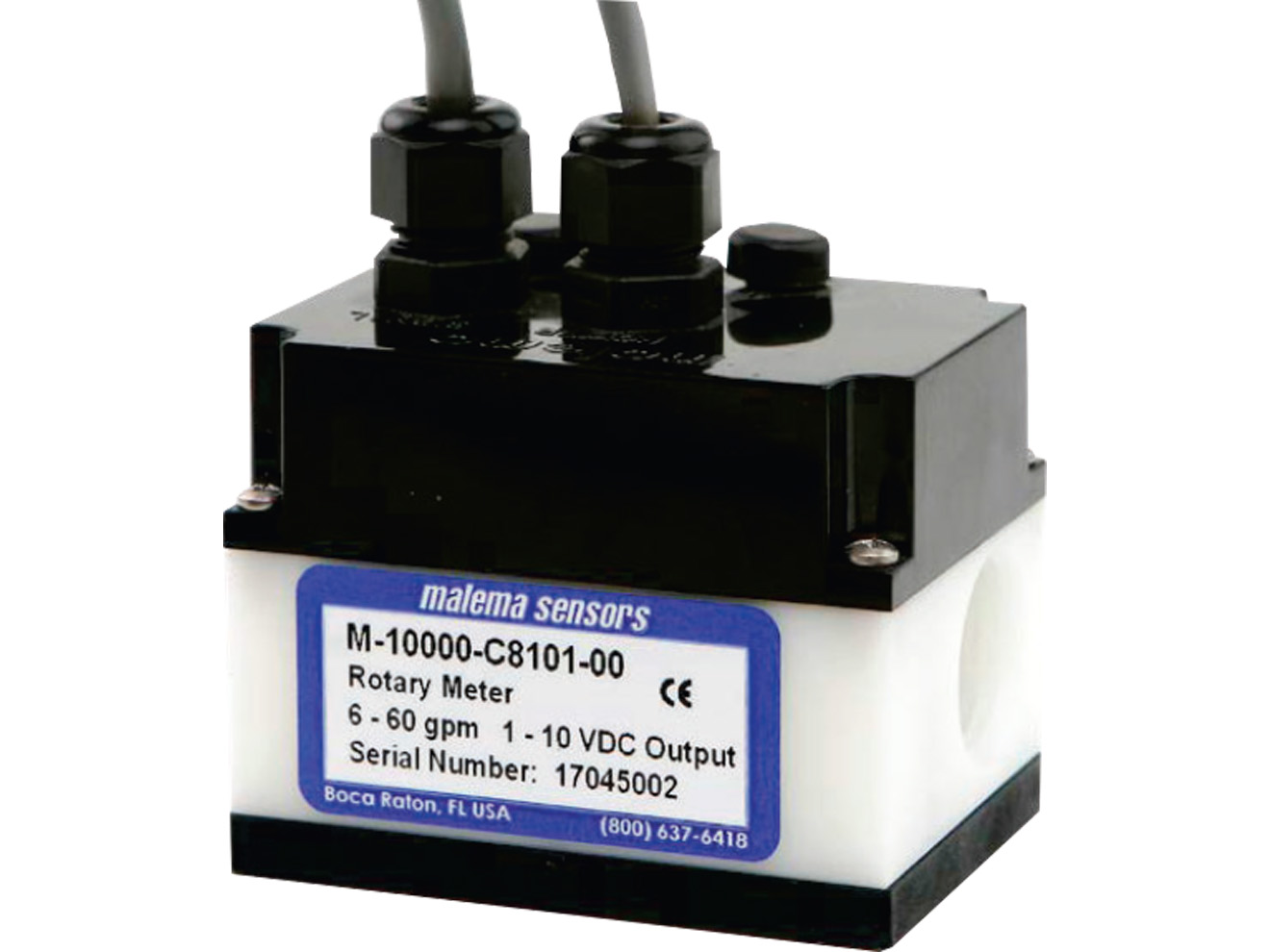

Malema M-10000 Paddle Wheel Flow Meter

Tangential turbine flow meter and switch with in line flow.

Starting at $475.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4 weeks
Product Specs

Features

  • Wide flow rangeability
  • Visual Indication
  • 4-20 mA, 0-10 VDC, or pulse output
  • Built in adjustable flow switch
  • Small footprint
  • Set point accuracy: ±5%
  • Repeatability: ±0.5
  • Flow ranges:
    • 0.1-225 l/min
    • 0.026-60 GPM
  • Set point range for air is referenced at 14.7 psia and 70° F
  • Set point range for water is referenced at 70° F

The M-10000 Paddle Wheel Flow Meter measures flow electronically in a wide range of industries. Enhancements to tangential turbine flow meter systems are producing a flow sensing device that is smaller, easier to install, and more accurate than ever before. The M-10000 fosters signal conditioning.

The rotational velocity of the rotary wheel caries linearly with the average velocity of the fluid flowing through the flow meter. Producing a square wave pulse from magnets embedded in the vanes of the rotor wheel. Depending on the output version of the M-10000, the pulse signal is relayed directly, converted to a 0-10 VDC (voltage) output or a 4-20 mA (current) output. The voltage and current models are span adjustable over the flow range of the unit.

Applications

  • Cooling systems
  • Laser equipment
  • Wet process systems
  • CVD, CMP, and lithography tools
  • Corrosive chemical distribution
