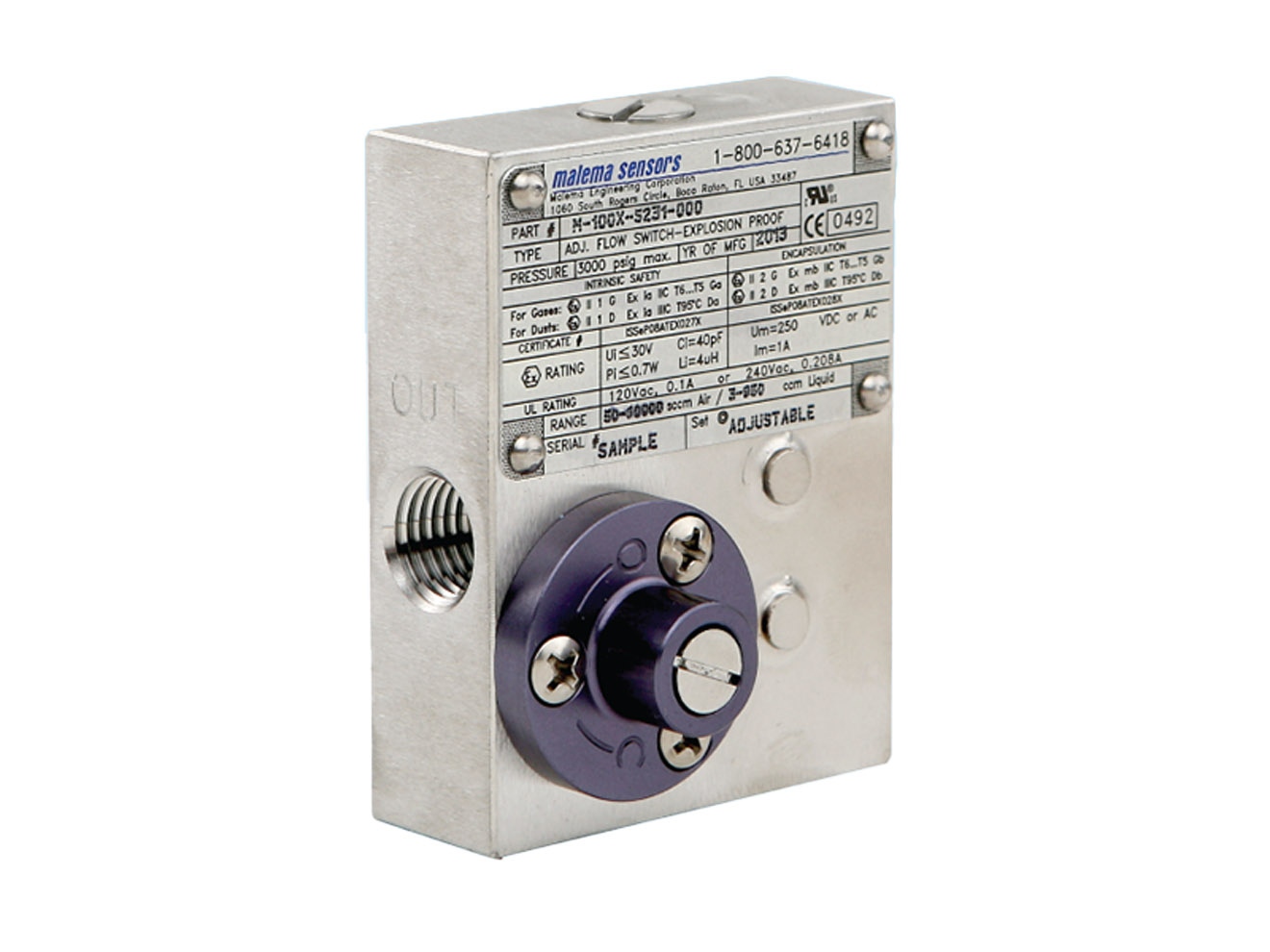

Malema M-100X Adjustable Flow Switch

Name: Malema M-100X Adjustable Flow Switch
Price: 1220.0 USD
Availability: BackOrder

Adjustable explosion proof flow switch with right-angle flow.

Starting at $1,220.00

View Company Reviews

Manufactured

By Malema

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 4 weeks

Product Specs

Features

Field adjustable
For liquid or gases
Low pressure drop
UL recognized for hazardous location
ATEX and IECEX certified for intrinsic safety and encapsulation and dust environment
Set point accuracy: ±10% maximum
Repeatability: ±2% maximum
Hysteresis: ±15-30%
Flow ranges:
- Air: 400-60,000 sccm
- Water 17-2000 ml/min
Set point range for air is referenced at 14.7 psia and 70° F
Set point range for water is referenced at 70° F

The M-100X adjustable flow switch is an extremely sensitive and explosion proof flow switch. It has been engineered to monitor vital sample flow parameters for instrumentation in process control and inert blanket gases. It is used as an auxiliary alarm monitor for flow meters and is suited for applications when installed on a bypass for determination of filter plugging. Available in 1/8" FNPT and 1/4" sizes with Stainless Steel as material options, the M-100X Flow Switch offers a water flow range of 17-2,000 ml/min and an air flow range of 400-65,000 sscm.

When there is no flow the free magnetic piston rests on the bottom of the bore. Process changes in the flow, relative to the variable orifice adjustment initiates the movement of the piston which is restored to its original position when there is a loss of flow. The movement of the piston actuates a sensitive reed switch which can be positioned to indicate a normally open or closed circuit, depending on the specific requirement. A counter-clockwise adjustment of the adjusting screw allows more flow through the bypass, effectively rendering a less sensitive flow switch. A clockwise adjustment of the adjusting screw reduces the bypass flow, redirecting the flow path to the main bore for a more sensitive flow switch.
