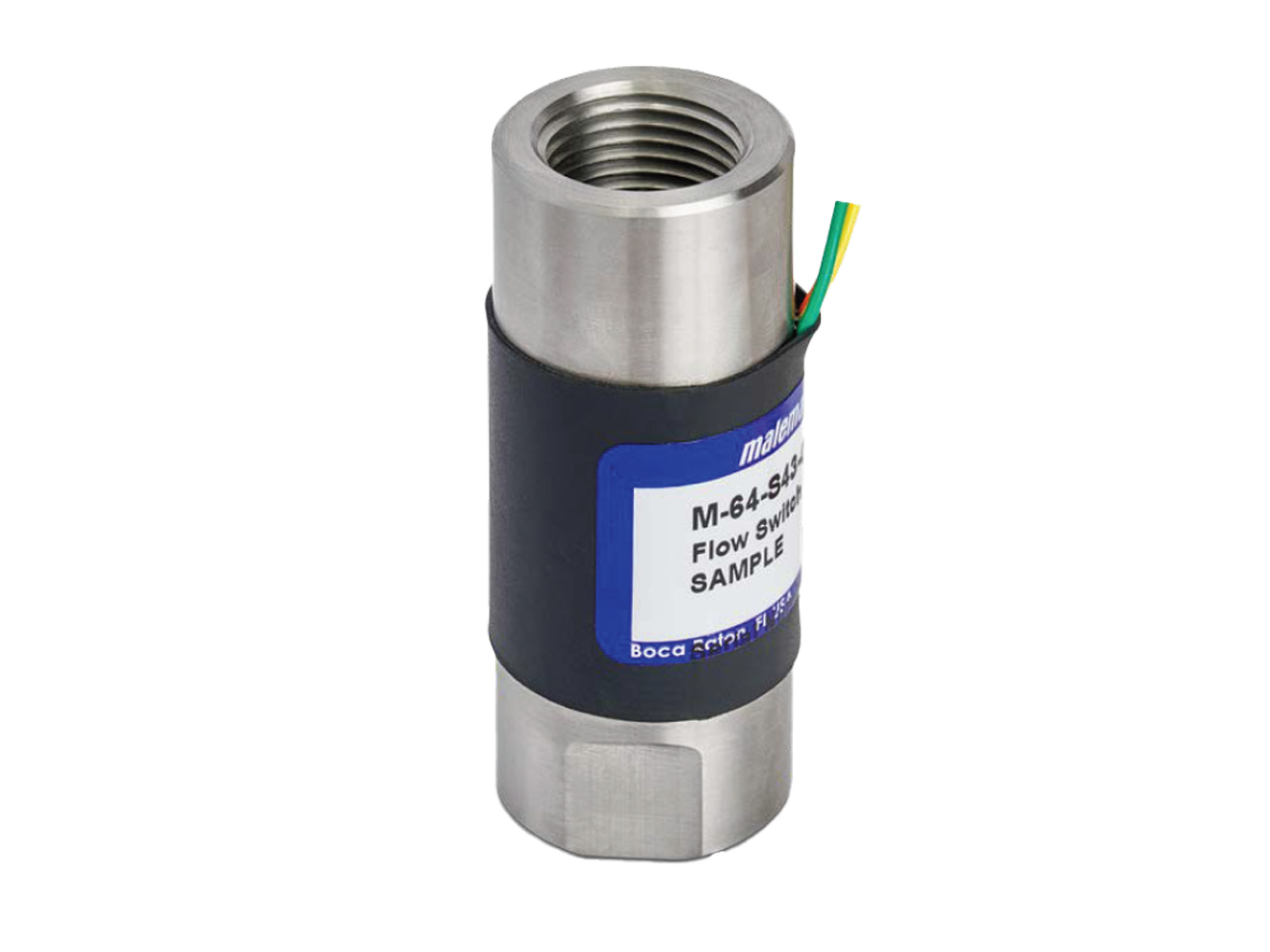

Malema M-64 Fixed Set Point In Line Flow Switch
In line flow switch with low pressure drop features.
Overview
Features
- In-line flow switch with Low PD features
- Senses increasing or decreasing flow
- Hermetically sealed
- Set point accuracy: ±10% maximum
- Repeatability: ±2%
- Hysteresis: ±15-30%
- Flow range:
- Air: 28,500 to 1,980,000 sccm
- Water 500 to 26,000 ml/min
- Set point range for air is referenced at 14.7 psia and 70° F
- Set point range for water is referenced at 70° F
Description
The Malema M-64 Fixed Set Point Flow Switches model, when triggered will be within 10% of the desired set point, all while offering repeatability of 2%. Available in 3/8”,1/2” and 3/4” sizes with stainless steel and PVC material options, the M-64 Flow Switches offer a water flow range of 400 to 26,000 CCM and air flow range of 28,500 to 1,980,000 SCCM.
The operating principle is based on a magnetic piston which responds only to the motion of fluids within the line, not to static or system pressures. In the presence of fluid flow, controlled movement of the piston actuates an external hermetically sealed reed switch. This switch can be used to actuate audible or visual alarms, as well as relays, or other controls.
Applications
- Sample flow monitoring
- Alarm actuation
- Purge flows
- Loss of flow protection
- Semiconductor etch tools
- Laser cooling equipment
