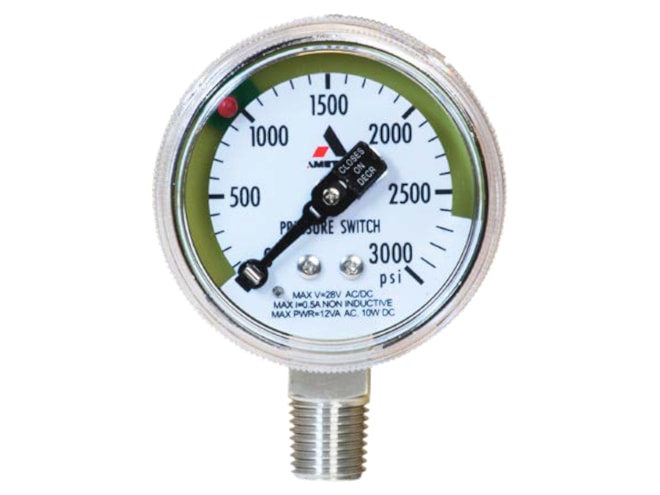

US Gauge IPS-300 Ultra High Purity Pressure Switch Gauge

Name: US Gauge IPS-300 Ultra High Purity Pressure Switch Gauge
Price: 329.1 USD
Availability: BackOrder

UHP pressure switch with low and center back mount options. Switch configurable for closure with increasing or decreasing pressure. Ranges from 30inHg VAC up to 4000psig available.

Starting at $329.10

Effective April 15th, 2025 US Gauge has added a 5% surcharge for this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By US Gauge

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 5 weeks

Product Specs

Features

Indication accuracy: ±2% of span
Switch point accuracy: will activate within ±2% span of full scale
Switch operation: user configurable for closure on increasing or decreasing pressure
Materials: 305 & 316L stainless steel (threaded polycarbonate window)
Set point index: 5 to 80% of span
Range(s):
- compound: 30inHg vacuum to 300psig
- gauge: 0 to 4000psi
Proof pressure: 130%
Operating temperature range:
- ambient: -4 to 149°F (-20 to 65°C)
- fluid: maximum 212°F (100°C)
Connection: 316L stainless steel face seal connection or 1/4 inch NPT; low mount or center-back mount
Helium leak tested
Dial diameter: 2in

US Gauge IPS-300 Ultra High Purity Pressure Switch Gauge is designed specifically with gas handling equipment in the semiconductor manufacturing industry in mind. The IPS-300 features a stainless steel bourdon tube driver switch, which can be configured for closure on increasing or decreasing pressure. The unit is available in both low mount and center back mount configurations, with VCR or NPT connections. A removable polycarbonate window on the face of the IPS-300 allows the user to access and adjust the set point of the alarm.

With an indication accuracy within 2%, the IPS-300 not only allows for reliable reads of gas pressure, but its magnetically actuated switch can work in conjunction with low voltage annunciators, lights or relays. A/D conversion permits data input to logic networks, microprocessors and PLCS. Providing easily adjustable set points with variable pressure ranges from compound to gauge, the IPS-300 is a cost-friendly, low maintenance choice for ultra high purity gas monitoring.
